Modeling Waves: Every Wave Has a Height and a Spacing You Can Draw
"Develop a model of waves to describe patterns in terms of amplitude and wavelength and that waves can cause objects to move."
"Examples of models could include diagrams, analogies, and physical models using wire to illustrate wavelength and amplitude of waves."
"Assessment does not include interference effects, electromagnetic waves, non-periodic waves, or quantitative models of amplitude and wavelength."

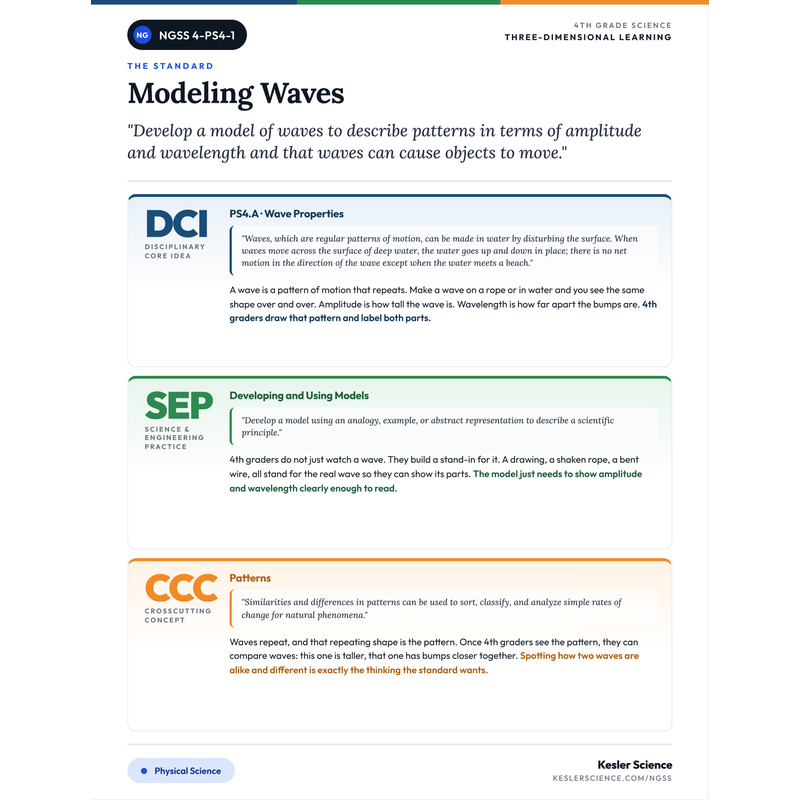

The three dimensions packed into this standard
Every standard bundles a DCI (the content), a SEP (the science practice), and a CCC (the crosscutting lens). They run in the same task, not in sequence.
"Waves, which are regular patterns of motion, can be made in water by disturbing the surface. When waves move across the surface of deep water, the water goes up and down in place; there is no net motion in the direction of the wave except when the water meets a beach."
"Waves of the same type can differ in amplitude (height of the wave) and wavelength (spacing between wave peaks)."
A wave is a pattern of motion that repeats. Make a wave on a rope or in water and you see the same shape over and over. Amplitude is how tall the wave is. Wavelength is how far apart the bumps are. 4th graders draw that pattern and label both parts.
"Develop a model using an analogy, example, or abstract representation to describe a scientific principle."
4th graders do not just watch a wave. They build a stand-in for it. A drawing, a shaken rope, a bent wire, all stand for the real wave so they can show its parts. The model just needs to show amplitude and wavelength clearly enough to read.
"Similarities and differences in patterns can be used to sort, classify, and analyze simple rates of change for natural phenomena."
Waves repeat, and that repeating shape is the pattern. Once 4th graders see the pattern, they can compare waves: this one is taller, that one has bumps closer together. Spotting how two waves are alike and different is exactly the thinking the standard wants.
📍 Where This Standard Fits in the K-12 Progression
Use this to plan the year. Knowing what students should already know and what they're heading toward keeps the lesson focused.
Waves are a new idea to name in 4th grade. Students arrive from 1st grade knowing that vibrating materials make sound and that sound can make materials vibrate. They have not yet drawn a wave or named its amplitude and wavelength.
Modeling Waves: Every Wave Has a Height and a Spacing You Can Draw
In middle school, students put numbers on waves. They use math to describe amplitude, wavelength, and frequency. The drawing becomes a measured model.

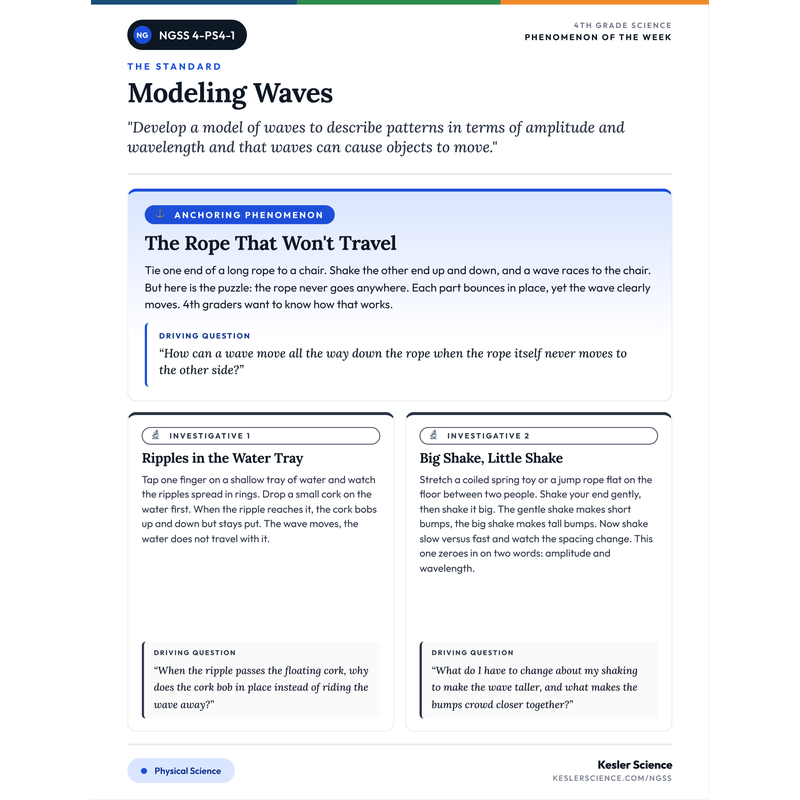

🌎 Phenomena for 4-PS4-1
Anchor the lesson in one puzzling phenomenon kids keep coming back to. Use the two investigative phenomena to sharpen specific facets.
The Rope That Won't Travel
Tie one end of a long rope to a chair. Shake the other end up and down, and a wave races to the chair. But here is the puzzle: the rope never goes anywhere. Each part bounces in place, yet the wave clearly moves. 4th graders want to know how that works.
"How can a wave move all the way down the rope when the rope itself never moves to the other side?"
- "If the rope stays in place, what is actually traveling to the chair?"
- "Why do the bumps get taller when I shake harder?"
- "What makes the bumps closer together or farther apart?"
Ripples in the Water Tray
Tap one finger on a shallow tray of water and watch the ripples spread in rings. Drop a small cork on the water first. When the ripple reaches it, the cork bobs up and down but stays put. The wave moves, the water does not travel with it.
"When the ripple passes the floating cork, why does the cork bob in place instead of riding the wave away?"
- "Is the water moving across the tray, or just up and down?"
- "How is this ripple like the wave on the rope?"
- "What happens to the ripples if I tap harder?"
Big Shake, Little Shake
Stretch a coiled spring toy or a jump rope flat on the floor between two people. Shake your end gently, then shake it big. The gentle shake makes short bumps, the big shake makes tall bumps. Now shake slow versus fast and watch the spacing change. This one zeroes in on two words: amplitude and wavelength.
"What do I have to change about my shaking to make the wave taller, and what makes the bumps crowd closer together?"
- "Which kind of shake changes the height of the wave?"
- "Which kind of shake changes how close the bumps are?"
- "Can I make a wave that is both tall and close together?"
⚠️ Misconceptions Your Students Will Walk In With
These come up almost every year. Knowing them in advance lets you head them off in the first lesson.
"The water or the rope travels along with the wave to the other end."
The wave travels, but the stuff it moves through stays put. Watch a cork floating on a ripple: it bobs up and down in the same spot while the ripple keeps going. The rope works the same way. Each part bounces in place and passes the motion along.
"A taller wave is the same as a wave with bumps closer together."
These are two different things. Amplitude is how TALL the wave is. Wavelength is how far APART the bumps are. A wave can be tall with bumps far apart, or short with bumps crowded together. 4th graders need to keep the two words separate.
"A wave is just water, so only water can make waves."
Water is an easy place to see waves, but waves happen in lots of things. A shaken rope makes a wave. A spring toy makes a wave. Sound travels as a wave through the air. For this standard we mostly use water and rope because they are easy to watch.
"Waves can't make anything move because the rope just sits there."
Waves carry energy, and that energy can push things. When an ocean wave reaches the beach it shoves sand and tosses a beach ball. When a ripple reaches the cork, it lifts the cork up and down. The wave moves objects even when the water stays in place.
🙋 Common Student Questions and How to Respond
These come up almost every time this standard gets taught. Plan a response and you'll keep the lesson focused.
Don't answer it for them. Ask, "What is each part of the rope doing right when the wave passes?" Steer them to up-and-down. What travels is the pattern of motion, the wave, not the rope itself. The rope hands the motion from one part to the next.
Catch this one early, it's the big mix-up. Have them point: amplitude is how TALL you point up and down, wavelength is how FAR you point across between two bumps. Make them show both with their hands on the same wave so the two words stay separate.
Push them back to the cork. "What did the cork do when the ripple reached it?" It bobbed. The wave lifted it. Then connect it to the beach: a wave can push a beach ball or shove sand even though the water itself bobs in place.
In 4th grade we don't put numbers on it. We compare. "Is this wave taller or shorter than that one?" Bigger amplitude, smaller amplitude. Save the rulers and numbers for middle school. Here the model just needs to SHOW which is taller.
📚 Vocabulary Students Need for 4-PS4-1
The terms students need to access this standard. Definitions in plain-English, classroom-ready language.
💡 Free Engagement Ideas for 4-PS4-1
Shake the Rope Wave Lab
Pairs tie a long rope to a chair and take turns shaking the free end. They shake gently, then big, then slow, then fast, and watch the wave change. Then each student draws their wave and labels the amplitude and the wavelength. The anchor becomes a hands-on model.
Water Tray Ripple Watch
Groups tap a finger on a shallow tray of water and drop a cork on top. They watch the ripple spread and notice the cork bobs in place. They tap gently and hard to compare wave heights. The wave moves but the water stays put.
Bend-a-Wire Wave Models
Students bend a piece of craft wire or a pipe cleaner into a wave shape, then build a second one with taller bumps and a third with bumps closer together. They line them up and label amplitude and wavelength on each. A physical model straight out of the standard's examples.
Compare-Two-Waves Sorting
Give students a stack of cards, each showing a different wave drawing. They sort the cards into 'tall waves' and 'short waves,' then re-sort into 'bumps close together' and 'bumps far apart.' Sorting by pattern is exactly the crosscutting concept in action.
📝 Assessment Ideas for 4-PS4-1
Three short tasks that hit all three dimensions. Doable in one class period each.
Students develop a model by drawing a wave and labeling the amplitude (the height) and the wavelength (the spacing between bumps). They add an arrow showing which way the wave travels. A direct check of the SEP wording: develop a model to describe the pattern.
Show two wave diagrams side by side, one taller and one with bumps closer together. Students write a sentence telling how the two waves are alike and how they are different, using the words amplitude and wavelength. Reasoning straight from the patterns crosscutting concept.
Give students a picture of a ripple passing a floating cork. They explain why the cork bobs up and down instead of riding away, and add that the wave can still move the cork. Checks whether they understand a wave moves while the water stays in place.
🎯 What Proficient Student Work Looks Like
Same prompt, three student responses at different proficiency levels. Use as anchor papers when scoring.
"Draw a model of a wave. Label the amplitude and the wavelength, and explain what each one tells you about the wave."
- A specific claim backed by data or observation
- Use of standard-specific vocabulary in context
- Connection between what students observe and the underlying science idea
- A question they're still wondering about (curiosity stays alive)
"My wave goes up and down. This part is tall. The bumps are here. Waves move on the water."
Drew a wave shape and noticed it has tall parts and bumps, but did not use the words amplitude or wavelength and did not say what each part means. The model is started but the labels are missing.
"I drew a wave. The amplitude is how tall the bump is, so I labeled the height. The wavelength is how far apart the bumps are, so I labeled the space between two bumps. My arrow shows the wave moving to the right."
Built a clear model with both parts labeled correctly and explained what amplitude and wavelength each mean. The arrow shows the wave travels. This is exactly what the standard asks a 4th grader to do.
"My model shows the amplitude at the tall part and the wavelength between two bumps. I drew a second wave that is taller and has bumps closer together. The wave can lift my cork up and down even though the water stays in one spot."
Labels both parts AND compares two waves by amplitude and wavelength, reaching the patterns crosscutting concept. Adds that the wave moves an object while the water stays put, tying the model back to the DCI without being asked.
