4th Grade NGSS Standards
Pick any standard. Each page is your full lesson-planning workspace for that standard.
Evidence of Energy Transfer: Energy Travels by Sound, Light, Heat, and Electricity

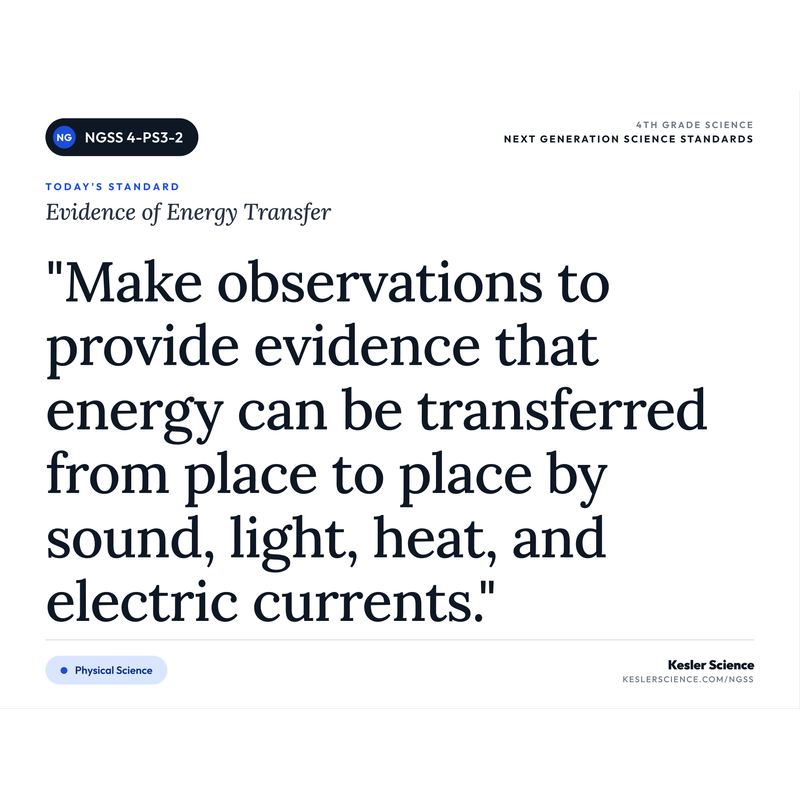

"Make observations to provide evidence that energy can be transferred from place to place by sound, light, heat, and electric currents."
"Assessment does not include quantitative measurements of energy."

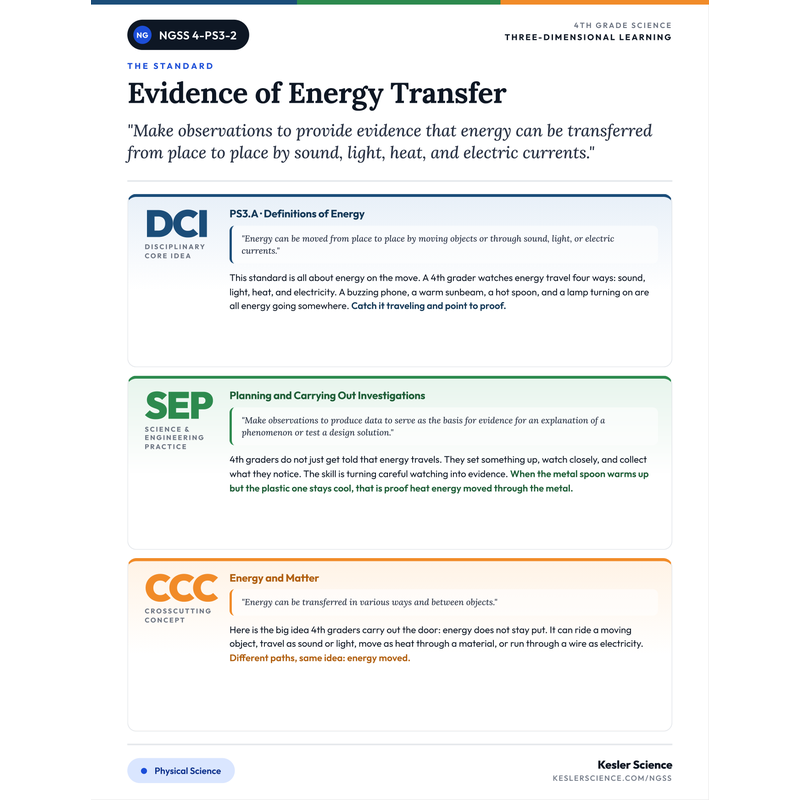

The three dimensions packed into this standard
Every standard bundles a DCI (the content), a SEP (the science practice), and a CCC (the crosscutting lens). They run in the same task, not in sequence.
"Energy can be moved from place to place by moving objects or through sound, light, or electric currents."
"Energy is present whenever there are moving objects, sound, light, or heat. When objects collide, energy can be transferred from one object to another, thereby changing their motion. In such collisions, some energy is typically also transferred to the surrounding air; as a result, the air gets heated and sound is produced. Light also transfers energy from place to place. Energy can also be transferred from place to place by electric currents, which can then be used locally to produce motion, sound, heat, or light. The currents may have been produced to begin with by transforming the energy of motion into electrical energy."
This standard is all about energy on the move. A 4th grader watches energy travel four ways: sound, light, heat, and electricity. A buzzing phone, a warm sunbeam, a hot spoon, and a lamp turning on are all energy going somewhere. Catch it traveling and point to proof.
"Make observations to produce data to serve as the basis for evidence for an explanation of a phenomenon or test a design solution."
4th graders do not just get told that energy travels. They set something up, watch closely, and collect what they notice. The skill is turning careful watching into evidence. When the metal spoon warms up but the plastic one stays cool, that is proof heat energy moved through the metal.
"Energy can be transferred in various ways and between objects."
Here is the big idea 4th graders carry out the door: energy does not stay put. It can ride a moving object, travel as sound or light, move as heat through a material, or run through a wire as electricity. Different paths, same idea: energy moved.
📍 Where This Standard Fits in the K-12 Progression
Use this to plan the year. Knowing what students should already know and what they're heading toward keeps the lesson focused.
4th graders just learned that a moving object has energy, and the faster it moves the more energy it has. They also know energy can transfer when a fast object hits something. This standard widens that idea: energy can also travel as sound, light, heat, and electricity.
Evidence of Energy Transfer: Energy Travels by Sound, Light, Heat, and Electricity
In middle school, students stop just observing energy transfer and start engineering with it. They design and test a device that minimizes or maximizes how much thermal energy moves, like a better cooler or a hand warmer, and they back their choices with data.

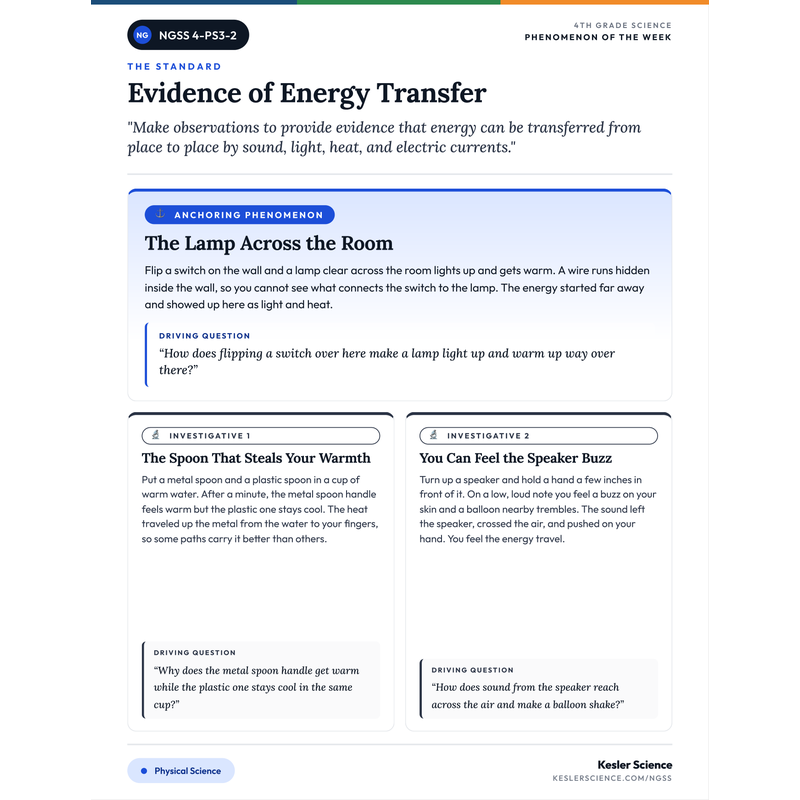

🌎 Phenomena for 4-PS3-2
Anchor the lesson in one puzzling phenomenon kids keep coming back to. Use the two investigative phenomena to sharpen specific facets.
The Lamp Across the Room
Flip a switch on the wall and a lamp clear across the room lights up and gets warm. A wire runs hidden inside the wall, so you cannot see what connects the switch to the lamp. The energy started far away and showed up here as light and heat.
"How does flipping a switch over here make a lamp light up and warm up way over there?"
- "What is traveling through the wire to the lamp?"
- "Why does the bulb get warm and not just bright?"
- "Where did the energy come from before it reached the switch?"
The Spoon That Steals Your Warmth
Put a metal spoon and a plastic spoon in a cup of warm water. After a minute, the metal spoon handle feels warm but the plastic one stays cool. The heat traveled up the metal from the water to your fingers, so some paths carry it better than others.
"Why does the metal spoon handle get warm while the plastic one stays cool in the same cup?"
- "Did the warmth travel up the spoon, or did the spoon make its own warmth?"
- "Why does metal carry the heat but plastic doesn't?"
- "Where did the warm water's energy go?"
You Can Feel the Speaker Buzz
Turn up a speaker and hold a hand a few inches in front of it. On a low, loud note you feel a buzz on your skin and a balloon nearby trembles. The sound left the speaker, crossed the air, and pushed on your hand. You feel the energy travel.
"How does sound from the speaker reach across the air and make a balloon shake?"
- "Is the buzzing the sound energy reaching my hand?"
- "What is the sound traveling through to get to me?"
- "Why does a louder note shake the balloon more?"
⚠️ Misconceptions Your Students Will Walk In With
These come up almost every year. Knowing them in advance lets you head them off in the first lesson.
"Heat and cold are two different things that travel."
Cold isn't a thing that moves. Only energy travels, and it shows up as heat. When the metal spoon feels warm, heat energy traveled into it. When something feels cold, it's because heat energy left it and moved into your warmer hand. There's no cold energy flowing in.
"Light just appears in a room. It doesn't really travel."
Light is energy on the move. It leaves the bulb or the sun, crosses the room or even space, and lands on whatever it hits. That's why your face feels warm in a sunbeam: light energy traveled all the way from the sun and reached your skin.
"The energy in the wire is made inside the lamp."
The lamp doesn't make the energy. The energy travels to the lamp through the wire as an electric current. It started somewhere else, often a power plant far away, and the current carried it to the lamp, where it became light and heat.
"Sound is just something you hear in your head, not real energy moving."
Sound is energy traveling through the air. You can feel a loud speaker buzz on your hand and watch it shake a balloon. That proves the sound energy left the speaker, crossed the air, and reached you. Hearing is just one way to notice it.
🙋 Common Student Questions and How to Respond
These come up almost every time this standard gets taught. Plan a response and you'll keep the lesson focused.
Don't hand it to them. Ask, "What happens at the end of the wire?" Steer them to the lamp lighting up and warming. The current moving through the wire is invisible, but the light and heat at the other end are the evidence that energy traveled through it.
Great connection. Push them to see the pattern: both send out light AND heat that travel to your skin. The sun's energy crosses space, the lamp's crosses the room. Same idea, different distance. Ask them what proof they have that the energy reached them.
Ask, "Which one let the heat travel up to your fingers?" The metal carries heat energy well, so it moved up to the handle. Plastic doesn't carry it well, so the energy mostly stayed in the water. Keep it at 'some materials carry heat better,' no numbers needed.
Yes, and that's a great noticing. Point them at the lamp: it gives off light AND heat at once. The speaker makes sound AND warms up a little. Tell them energy often takes more than one path, and ask them to spot every path they can.
📚 Vocabulary Students Need for 4-PS3-2
The terms students need to access this standard. Definitions in plain-English, classroom-ready language.
💡 Free Engagement Ideas for 4-PS3-2
Warm Spoon Heat Race
Groups put a metal spoon, a plastic spoon, and a wooden spoon in a cup of warm water and feel which handle warms first. They record what they notice each minute and write one sentence about heat energy traveling up the metal best. A clean way to watch heat transfer.
Feel the Sound Station
4th graders hold a hand or a small balloon in front of a speaker playing a low, loud note and describe the buzz they feel and the way the balloon trembles. They write down the evidence that sound energy traveled from the speaker through the air to them. Turns an invisible idea into something you can feel.
Sunbeam vs. Shade Test
4th graders place two identical cups, one in a sunny window and one in the shade, and feel which warms up. They use the result as evidence that light energy from the sun traveled to the cup and warmed it. Great for connecting light and heat in one activity.
Build-the-Evidence Energy Chart
Using what they observed at the stations above, students fill a four-column chart, one column each for sound, light, heat, and electricity, and write the evidence that energy traveled in each one. Pulls all four paths together and turns their observations into proof.
📝 Assessment Ideas for 4-PS3-2
Three short tasks that hit all three dimensions. Doable in one class period each.
Give 4th graders the warm-spoon results, either from their own test or a class chart. They write a short response with their observation and use it as evidence that heat energy traveled up the metal spoon from the warm water. Mirrors the SEP: use an observation as the basis for evidence.
Show four pictures: a ringing phone, a sunbeam on a hand, a hot pan handle, and a lamp plugged into a wall. 4th graders name how the energy traveled in each (sound, light, heat, or electricity) and where it started and ended. Checks the CCC: energy travels in various ways.
4th graders draw the wall switch, the wire, and the lamp, then use arrows and labels to show the energy traveling through the wire and leaving the bulb as light and heat. A picture-based check that shows whether they can track energy moving from place to place.
🎯 What Proficient Student Work Looks Like
Same prompt, three student responses at different proficiency levels. Use as anchor papers when scoring.
"Use your observations from the spoon test to provide evidence that energy can be transferred from one place to another by heat."
- A specific claim backed by data or observation
- Use of standard-specific vocabulary in context
- Connection between what students observe and the underlying science idea
- A question they're still wondering about (curiosity stays alive)
"The metal spoon got hot. The water was warm. Heat is hot."
Notices the metal spoon got warm, which is the right object, but never says the energy traveled or where it came from. No clear evidence that heat moved from the water to the spoon. Stops at naming that it was hot.
"I put the metal spoon in the warm water. After a minute the top of the handle felt warm even though it was not in the water. This shows the heat energy traveled up the spoon from the warm water to my fingers."
Gives a real observation, the warm handle that was never in the water, and uses it as evidence that heat energy traveled from the water up the spoon. This is exactly what the standard asks a 4th grader to do.
"The metal spoon handle got warm but the plastic one stayed cool in the same cup. My evidence is that I felt the metal handle get warm even though only the bottom touched the warm water. The heat energy traveled up the metal from the water to my fingers, but the plastic did not carry it well, so it stayed cool. Energy moved as heat, and metal carried it better than plastic."
Backs the claim with a clear observation AND compares two materials to show heat travels better through metal. Tracks the energy from the water, up the spoon, to the fingers. Reaches the CCC idea that energy travels in different ways without being asked.
