Thermal Equilibrium Lesson Plan (TEKS 7.8B): A Complete 5E Lesson for Heat Flow and Equilibrium

Chris Kesler · 10 min read

The first time I taught thermal equilibrium, I gave my students a clean definition, made them write it down, and assumed they'd transfer it to a real situation. They couldn't. When I asked, "Why does an ice cube melt in your drink?" half the class said the cold from the drink moved into the ice. The other half said the ice's coldness left the ice and made the drink cold. Both were wrong, and the definition on their paper hadn't fixed it.

The move that finally worked was sketching two cups with a line graph underneath. One cup at 90 degrees, the other at 30 degrees. I'd draw the two lines curving toward each other on the graph until they met in the middle around 60 degrees. Then I'd label that meeting point "thermal equilibrium." Students could see, visually, that energy was moving one direction only, and the meeting point was where the net flow stopped. After that, I could finally start asking the deeper questions.

That's the core idea behind this 5E lesson for TEKS 7.8B. The verb in the standard is explain. You can't get there with one definition. Kids have to see the energy move and predict where it ends up.

⏱ 10 class periods 📓 7th Grade Physics 🧪 TEKS 7.8B 🎯 Differentiated for D + M 💻 Print or Digital

Inside the Thermal Equilibrium 5E Lesson

The 5E instructional model walks students through five phases: Engage, Explore, Explain, Elaborate, and Evaluate. It flips the traditional lecture-first sequence on its head. Students explore a concept hands-on before you ever explain it, which means by the time you do explain it, they have something to hook the vocabulary onto.

I switched to the 5E model years ago and stopped going back. Kids retain more, ask better questions, and stop staring at me waiting to be told the answer. The Thermal Equilibrium 5E Lesson is built on this framework from start to finish. Here's how it plays out across the five phases.

🎯 Engage

Day one is a teacher-led hands-on hook. With your help, each small group fills a mug with hot water, sets the mug on the table, and holds a hand above the opening. They sketch what they feel and observe, then make a prediction: if the mug sits there for thirty minutes, what will happen to the temperature of the water and the temperature of the air around it? Students don't have to be right. They just have to commit to a prediction and explain their reasoning.

By the end of the period, students have a drawing of the mug, an arrow showing where they think the energy is moving, and a written prediction of the final temperature. Nobody has heard the term "thermal equilibrium" yet. That's the point. They're walking into the rest of the unit with a real prediction to test against.

What's included in the Engage:

Teacher directions for the hot mug observation
Printable student observation sheet
Answer key for the discussion questions

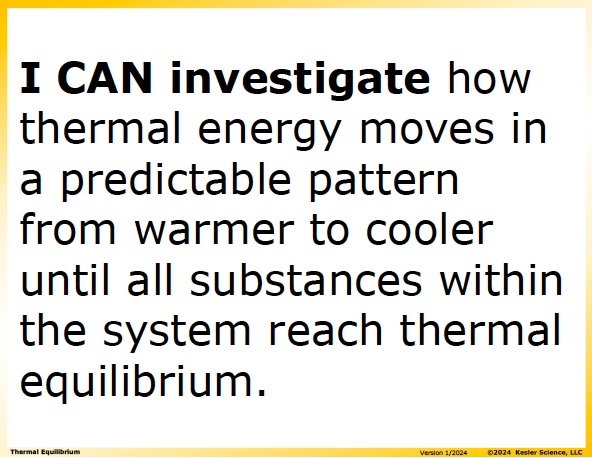

Four learning objective slides (standard verbatim, "Explain" highlighted, "I CAN...", and "WE WILL...")
An 18-card illustrated Physics Word Wall in English and Spanish covering the full unit vocabulary

🔬 Explore

The Thermal Equilibrium Station Lab is the heart of the Explore phase. Students rotate through 8 stations (plus a 9th challenge station for early finishers) over one class period. The Station Lab is split into four input stations (where kids take in new information) and four output stations (where they show what they learned).

The four input stations:

🎬 Watch It! — Students watch a short video on heat flow and thermal equilibrium and answer guided questions.
📖 Read It! — A one-page reading passage at two differentiated levels, with a Spanish version included.
🔬 Explore It! — A hands-on investigation (the heart of the Station Lab) where students measure the temperature of warm water and cold water as they sit in the room, recording data until both reach the same temperature.
💻 Research It! — Reference cards with arrow diagrams showing energy flow direction, a thermometer explainer, and real-world examples like an ice cube melting in soda.

The four output stations:

📋 Organize It! — A 12-card sort where students physically place scenarios under "still transferring" or "reached equilibrium."
🎨 Illustrate It! — Students draw the two-cup line graph from cold-water and hot-water starting temperatures meeting in the middle at the equilibrium temperature.
✍️ Write It! — Three open-ended questions in complete sentences (this is where you see who really gets it).
📝 Assess It! — A short formative check with multiple choice and a fill-in-the-blank vocabulary paragraph.

Print and digital versions are both included. If you want the full breakdown of what happens at every single station, what students produce, and how to set it up, that's in our dedicated Station Lab post.

→ Read the full Thermal Equilibrium Station Lab walkthrough 8 stations, materials list, teacher tips

The Station Lab is included in the full 5E lesson. You don't need to buy it separately if you're getting the whole unit.

📚 Explain

Here's the real payoff of doing the Engage and Explore before the Explain: by the time kids hit this phase, they've already watched two cups of water at different temperatures slowly equalize and they've predicted, then measured, where the temperatures would meet. They have a working understanding before you start naming things. The discussions get deeper, the questions get sharper, and you spend less time defining and more time pushing their thinking.

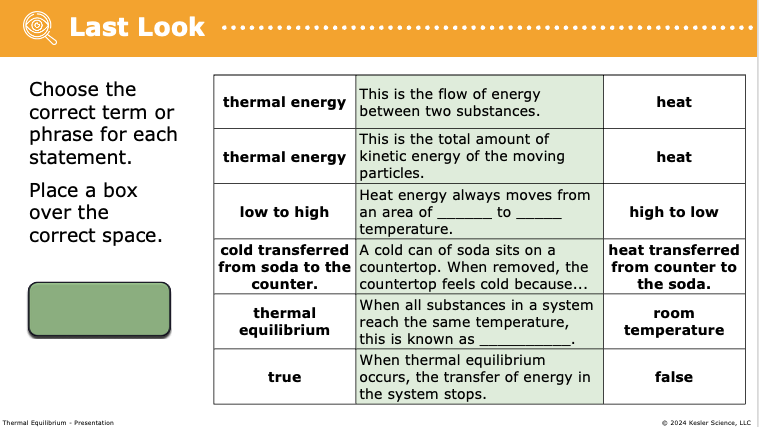

The Thermal Equilibrium Presentation walks 7th graders through the full scope of TEKS 7.8B, one concept at a time, with energy-flow diagrams on nearly every slide. The deck opens with a quick reset on thermal energy itself (the kinetic energy of moving particles inside a substance) and introduces the idea that thermal energy can move between substances through conduction, convection, or radiation. From there it builds to heat as the actual flow of thermal energy between two objects at different temperatures.

Students learn that heat always flows in one direction. From the warmer substance to the cooler substance. The warmer substance gets cooler, the cooler substance gets warmer, and that continues until both substances reach the same temperature. That meeting point is thermal equilibrium. Once equilibrium is reached, the net transfer of thermal energy stops. The deck is very careful to emphasize that the particles do not stop moving when equilibrium is reached. They keep bouncing and vibrating exactly like they did before, but now the energy moving one direction is balanced by the energy moving the other direction, so neither object gets hotter or colder. "No net transfer" does not mean "no motion."

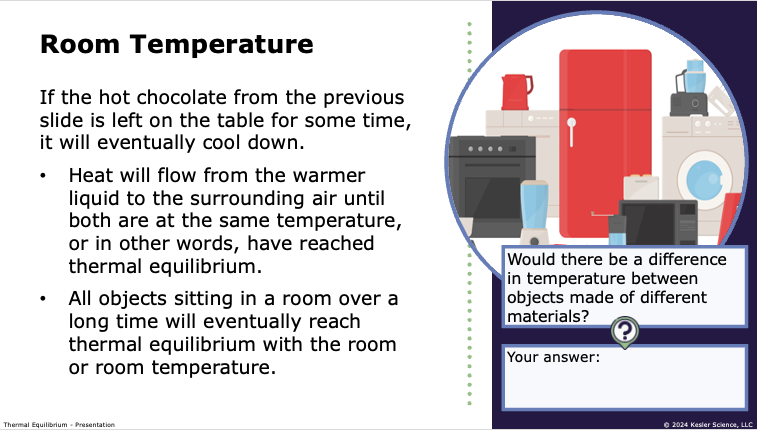

The lesson uses a couple of relatable examples that anchor the idea. Mixing cocoa powder into hot water with a metal spoon. The spoon starts cool, the water starts hot, and over a minute or two the spoon warms up while the water cools down. Eventually they're the same temperature. Then the entire mug of cocoa sitting on the kitchen counter slowly cools to room temperature, because the whole drink and the air around it are reaching equilibrium together. The deck also explains how a thermometer actually works (the liquid inside reaches thermal equilibrium with whatever it's measuring) and gives a real-world Think About It on swimming pool water that feels warmer than the air around it at dusk.

What makes the Thermal Equilibrium Presentation different from a typical physics slideshow is that kids are doing something on almost every single slide. It's not a lecture deck. It's a participation deck. "Your answer:" prompts appear on most slides, Brain Breaks reset attention every few slides, Quick Action INB tasks (drag-and-rotate the arrow to show energy flow direction, a vocabulary triangle match, and the pool-at-dusk scenario) show up throughout, and Think About It prompts push deeper. The deck closes with a Check for Understanding tied back to the Essential Questions: How does thermal energy move in a predictable pattern? and What is thermal equilibrium?

The Explain materials in this product include:

An editable 19-slide Presentation at two differentiated levels (Dependent and Modified), works in PowerPoint or Google Slides
A guided fill-in-the-blank student notes handout that mirrors the Presentation, with answer key
A Paper Interactive Notebook (English and Spanish) students cut, fold, and glue into their notebooks
A Digital Interactive Notebook at both levels with answer keys, for 1:1 classrooms or Google Classroom

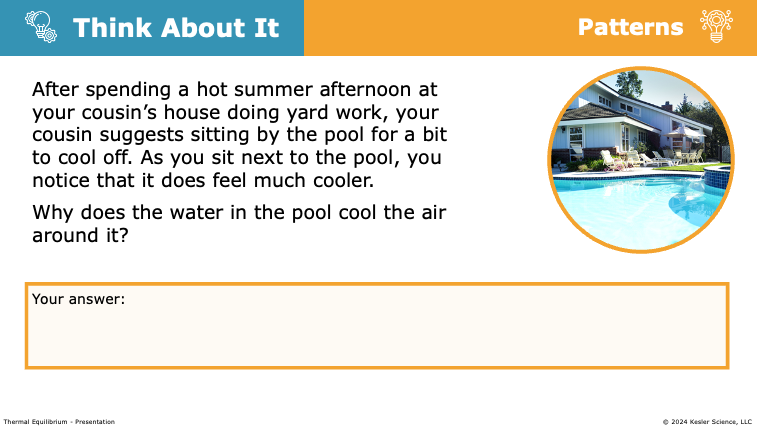

The Explain runs across two class periods. The built-in Think About It prompts are where the real discussion happens, so let those breathe.

🛠️ Elaborate

The Elaborate phase is where students stretch what they learned about thermal equilibrium and put it into a project of their choosing. In this 7th grade physics lesson, that's a Student Choice Project board with six different project options plus a "design your own" pathway.

Students might design a children's book that explains why ice melts in lemonade using arrows for energy flow, sketch and label a line graph showing two substances reaching equilibrium and then explain what is and isn't happening at that meeting point, or record a short news report on why a swimming pool feels warmer than the night air at the end of a hot summer day. There are options for kids who love to write, kids who love to draw, kids who love to build, and kids who love to perform. Whatever the project, the point is the same: students apply heat flow and thermal equilibrium to a real-world artifact instead of a worksheet.

Choice is the whole point. By letting students pick how they show their thinking, you get more authentic work for TEKS 7.8B and you actually get to see what they understand about thermal equilibrium.

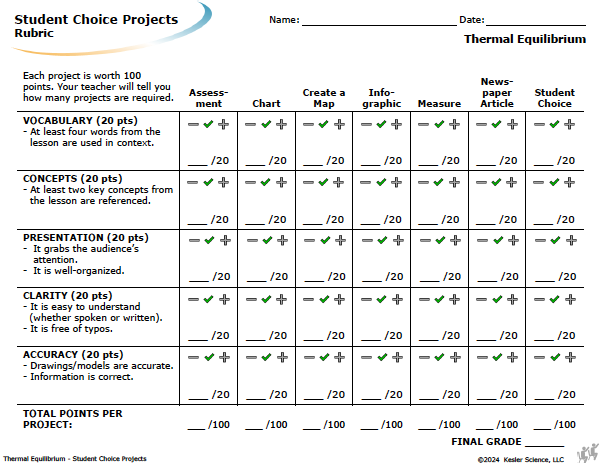

The rubric (the part teachers actually want)

Every project, no matter which option a student picks, is graded on the same rubric with five categories at 20 points each:

Vocabulary (20 pts) — At least four words from the lesson are used in context.
Concepts (20 pts) — At least two key concepts from the lesson are referenced.
Presentation (20 pts) — The project grabs attention and is well-organized.
Clarity (20 pts) — Easy to understand. Free of typos.
Accuracy (20 pts) — Diagrams and explanations are accurate. The science is right.

The rubric uses a minus / check / plus shorthand on every row so you can grade a stack of projects quickly without re-reading every criterion.

Two differentiated versions in one file

The standard version is for students ready for independent application. The Reinforcement version is for students who need additional vocabulary or concept support. Three of the six options are swapped for projects with a tighter vocabulary tie-in, and "design your own" is replaced with "collaborate with the teacher" so kids aren't pitching cold.

✅ Evaluate

The Evaluate phase wraps the unit with a formal assessment. It's not all bubble-in. Several questions hand students a two-cup scenario with starting temperatures and ask them to predict the equilibrium temperature, explain what happens to the particles, and identify the direction of energy flow.

The full assessment has 12 questions across five formats:

Multiple choice (4 questions) covering the definition of heat, the direction of energy flow, what "net transfer" means, and the difference between heat and temperature
Hotspot / visual (2 questions) where students click the diagram that shows equilibrium and describe what is and isn't happening to the particles
Multiselect (2 questions) where students pick all the situations that have reached thermal equilibrium
Short answer (2 questions) on what is still happening at the particle level once equilibrium is reached
Multipart scenario (2 questions) with a 3-student debate where kids identify which reasoning correctly applies thermal equilibrium and which graph supports it

A modified version is included for students who need additional support. Fewer multiple-choice distractors, sentence-starter scaffolds on the short-answer items.

If you've taught all five phases, this assessment shouldn't surprise anyone. It's a chance for kids to show you they get it.

How everything fits together

If you want the whole experience (Engage hook, the Station Lab as the Explore, the Explain day with Presentation and interactive notebook, the Student Choice Elaborate, and the Evaluate assessment all in one download), that's the Thermal Equilibrium Complete 5E Science Lesson.

If you only need the one-day hands-on activity, the Station Lab works as a standalone. Most teachers buy the full 5E because the Station Lab works harder when it's bookended by a strong Engage and a follow-up Explain. But both are honest options.

Two options

Thermal Equilibrium Complete 5E Lesson cover

Full 5E Lesson — ~10 class periods $13.20 Get the 5E Lesson

Just the Station Lab — 1–2 class periods $7.20 Get the Station Lab

What you need to teach Thermal Equilibrium (TEKS 7.8B)

Materials beyond what's in the download:

Mugs or beakers for holding hot water during the Engage and Explore (one per small group)
Thermometers (analog or digital) for the Explore It! station temperature tracking
Ice cubes or warm water for the equilibrium investigation
Pencils, colored pencils or markers, and printed student pages
A device with internet for the Watch It! station and the slide deck

Standard covered: Texas TEKS 7.8B — Explain that thermal energy transfer continues until objects in a system reach the same temperature, known as thermal equilibrium. See the full standard breakdown →

Grade level: 7th grade science

Time: About 10 class periods of 45 minutes each, done with fidelity. The product also ships with a compressed sample unit plan if you need to move faster.

Common misconceptions this lesson clears up

"When two objects reach equilibrium, the particles stop moving"
This one trips up a lot of students. Particles never stop moving at normal temperatures. At thermal equilibrium, the particles in both objects have the same average kinetic energy. Energy still transfers in both directions, but it balances out, so there's no net change. Motion continues; net transfer stops.
"Thermal equilibrium means both objects are cold"
Equilibrium just means the two objects reach the same temperature. If you put two hot objects together and they settle at 150 degrees, that's still thermal equilibrium. It's a shared temperature, not a cold temperature. The final temperature depends on the starting temperatures and the amount of matter in each object.
"The final temperature is always exactly halfway between the two starting temperatures"
Not quite. The final temperature depends on how much matter each object contains and what it's made of. A tiny ice cube dropped into a big pot of hot water will barely change the water's temperature. A giant block of ice in the same pot will cool the water way down. The size and type of matter on each side matter just as much as the starting temperatures.
"Once things reach equilibrium, energy stops moving forever"
Energy keeps exchanging between the two objects. It just balances out, so neither object gets hotter or colder. If something changes the system (a heat source is added, the insulation is removed, a cold object is introduced), energy starts flowing in a net direction again until a new equilibrium is reached.

What's included in the Thermal Equilibrium 5E Lesson download

📷 Inside-the-product — add screenshot of Read It passage or sample answer sheet

When you buy the Thermal Equilibrium Complete 5E Lesson, you get a single download with the whole unit:

✅ Engage materials — teacher directions, student observation sheet, answer key, four learning objective slides, 18-card illustrated Physics Word Wall (English + Spanish)
✅ The full Station Lab — 8 stations + 1 challenge, print and digital, two reading levels, Spanish Read It!
✅ Explain materials — editable 19-slide Presentation at two differentiated levels (with built-in Brain Breaks, Quick Action INB tasks, and Think About It prompts), guided fill-in-the-blank student notes handout with answer key, Paper Interactive Notebook (English + Spanish), Digital Interactive Notebook at two levels with answer keys
✅ Elaborate (Student Choice Projects) — 6 project options + design-your-own, plus a Reinforcement version with vocabulary-focused alternatives, 5-category rubric included
✅ Summative assessment — full 12-question version and modified version with sentence-starter scaffolds, both with answer keys
✅ Sample 8-day unit plan — day-by-day pacing guide

A couple of real-talk tips from running this lesson

1. Sketch the two-cup line graph on Day 1, even if you're behind.

Kids who walk into the Station Lab without that mental picture try to memorize equilibrium as a definition. Kids who saw the two lines curving toward each other on the board already see the idea in their head.

2. Pre-fill the warm and cold water cups before the Station Lab.

If you hand kids empty cups and ask them to fill from the sink during station rotations, half the period turns into a water management problem. Stage the cups ahead and rotation stays clean.

3. Save 10 minutes at the end of the Station Lab day for a class debrief.

Ask: "What in your room right now is at thermal equilibrium with the air?" The desk, the chair, the wall, the floor. That five-minute conversation is the bridge to the Explain day.

Get the Thermal Equilibrium 5E Lesson

Buy the full Thermal Equilibrium 5E Lesson — $13.20

Or if you only need the one-day hands-on Station Lab:

Buy the Thermal Equilibrium Station Lab — $7.20

(The Station Lab is included in the full 5E Lesson)

Frequently asked questions

Does this cover all of TEKS 7.8B?

Yes. The full standard is addressed across all five phases, with the "explain" verb baked into the Explore and Elaborate activities.

What do my students need to know before this lesson?

A basic understanding of thermal energy and heat transfer methods (which is covered in TEKS 7.8A). If your kids can describe conduction, convection, and radiation, they're ready.

How long does it take to teach?

Done with fidelity, about 10 class periods of 45 minutes each: one day for the hands-on Engage, two days for the Station Lab, two days for the Presentation and Interactive Notebook, three days for the Student Choice Project, and one to two days for review and the assessment. The product also ships with a compressed 8-day sample unit plan if you need to move faster.

Do I need special supplies?

Just mugs or beakers, thermometers, and warm and cold water for the investigation. Most teachers already have everything on hand.

Does this work for digital classrooms?

Yes. Every component has a digital version. The Station Lab is fully digital-ready (Google Slides), the Presentation works in Google Slides, and the Student Choice Projects can be submitted as videos, slide decks, or written work.

Is this 5E lesson aligned to NGSS too?

It aligns most directly with MS-PS3-4 (planning an investigation to determine the relationships among the energy transferred, the type of matter, the mass, and the change in the average kinetic energy of the particles). Built TEKS-first, but the standards overlap heavily.
