Energy of Waves Lesson Plan (TEKS 6.8C): A Complete 5E Lesson for Transverse and Longitudinal Waves

Inside the Energy of Waves 5E Lesson

The 5E instructional model walks students through five phases: Engage, Explore, Explain, Elaborate, and Evaluate. It flips the traditional lecture-first sequence on its head. Students explore a concept hands-on before you ever explain it, which means by the time you do explain it, they have something to hook the vocabulary onto.

I switched to the 5E model years ago and stopped going back. Kids retain more, ask better questions, and stop staring at me waiting to be told the answer. The Energy of Waves 5E Lesson is built on this framework from start to finish. Here's how it plays out across the five phases.

🎯 Engage

Day one is a teacher-led hands-on hook using slinkies (or jump ropes if you don't have enough slinkies to go around). Each pair of students gets one and follows step-by-step teacher directions to make both kinds of waves, mark one coil with a small piece of tape, and observe what the tape actually does while the wave travels.

By the end of the period, kids have sketched both wave types on their student sheet in their own hand, and they can explain in their own words why a transverse wave looks like a sine curve and a longitudinal wave looks like a pattern of squeezes and stretches. Nobody has heard a vocabulary lecture yet. That's the point. They're walking into the rest of the unit with a working mental model, not a memorized definition.

What's included in the Engage:

• Teacher directions for the slinky wave activity
• Printable student observation sheet
• Answer key for the discussion questions

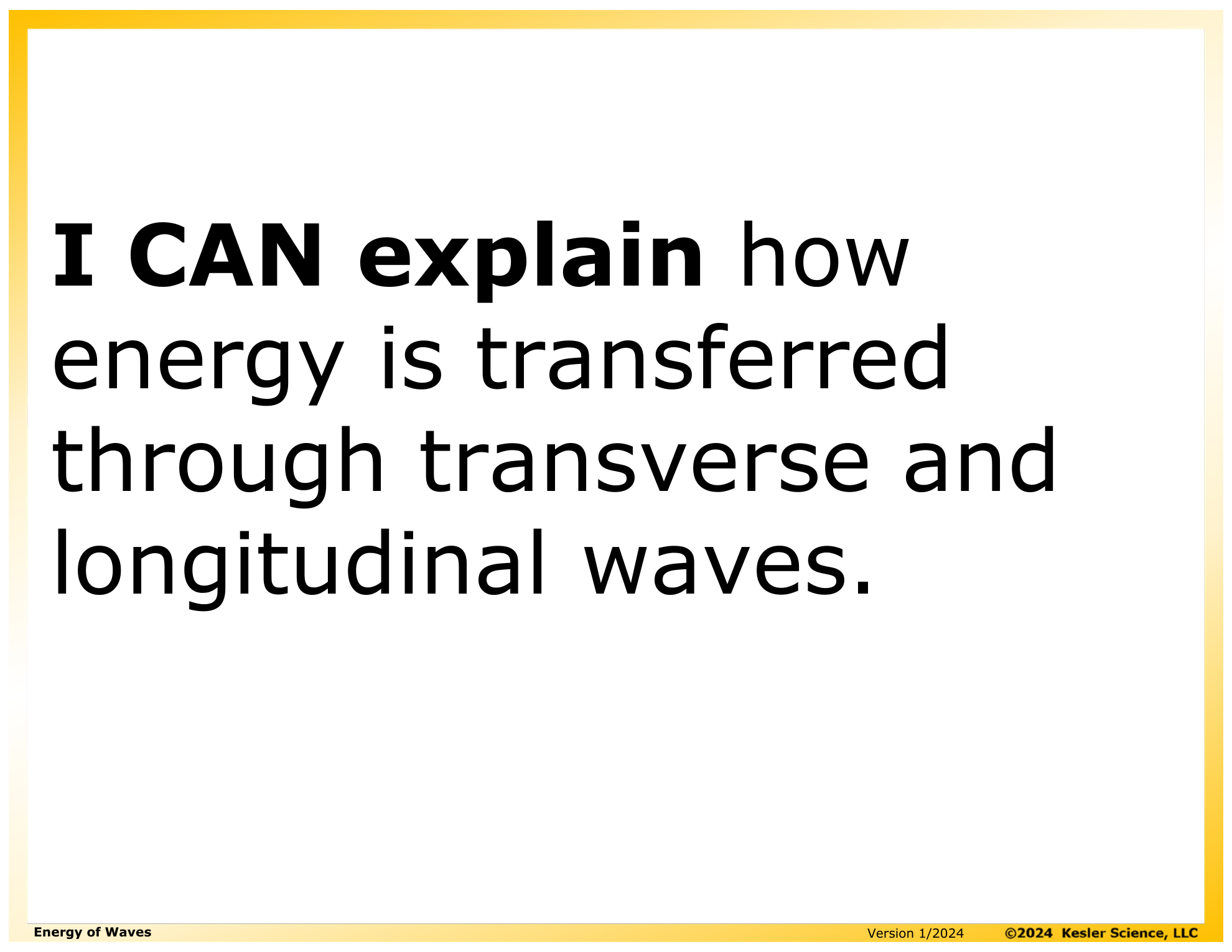

• Four learning objective slides (standard verbatim, "Compare and contrast" highlighted, "I CAN...", and "WE WILL...")
• An illustrated Waves Word Wall in English and Spanish covering the unit vocabulary

🔬 Explore

The Energy of Waves Station Lab is the heart of the Explore phase. Students rotate through 8 stations (plus a 9th challenge station for early finishers) over one to two class periods. The Station Lab is split into four input stations (where kids take in new information) and four output stations (where they show what they learned).

The four input stations:

• 🎬 Watch It! — Students watch a short video on transverse and longitudinal waves and answer guided questions.
• 📖 Read It! — A one-page reading passage at two differentiated levels, with a Spanish version included.
• 🔬 Explore It! — Students use a tuning fork in a cup of water, a slinky, and a stretched rubber band to investigate how different waves move energy without moving matter.

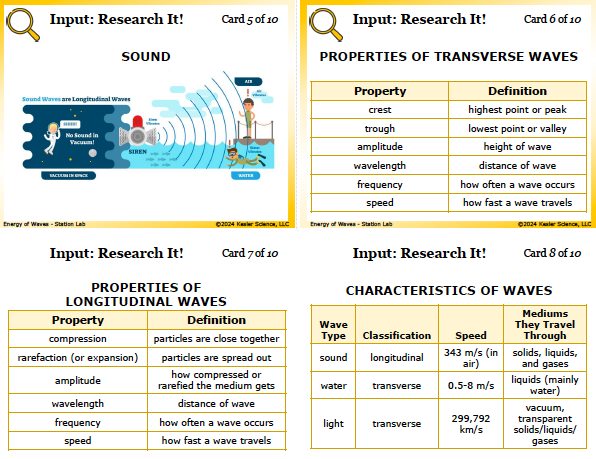

• 💻 Research It! — Reference cards with wave anatomy diagrams (crest, trough, amplitude, wavelength), wave types, and real-world wave examples.

The four output stations:

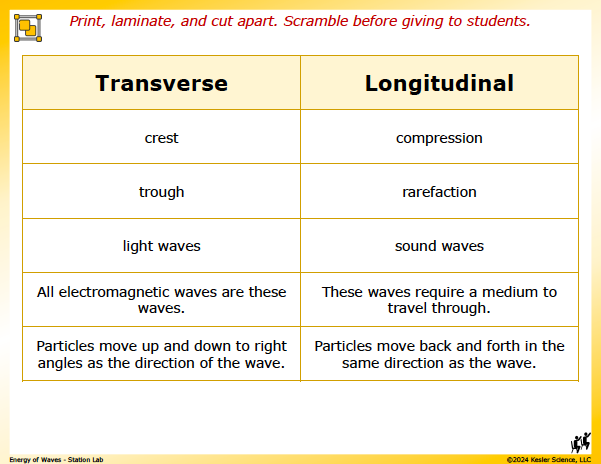

• 📋 Organize It! — A card sort where students place real-world waves under transverse, longitudinal, mechanical, and electromagnetic.
• 🎨 Illustrate It! — Students draw and label both wave types with crest, trough, amplitude, wavelength, compression, and rarefaction.
• ✍️ Write It! — Three open-ended questions in complete sentences (this is where you see who really gets it).
• 📝 Assess It! — A short formative check with multiple choice and a fill-in-the-blank vocabulary paragraph.

Print and digital versions are both included. If you want the full breakdown of what happens at every single station, what students produce, and how to set it up, that's in our dedicated Station Lab post.

→ Read the full Energy of Waves Station Lab walkthrough 8 stations, materials list, teacher tips

The Station Lab is included in the full 5E lesson. You don't need to buy it separately if you're getting the whole unit.

📚 Explain

Here's the real payoff of doing the Engage and Explore before the Explain: by the time kids hit this phase, they've already made waves with their own hands. They have a working understanding before you ever start naming things. The discussions get deeper, the questions get sharper, and you spend less time defining and more time pushing their thinking.

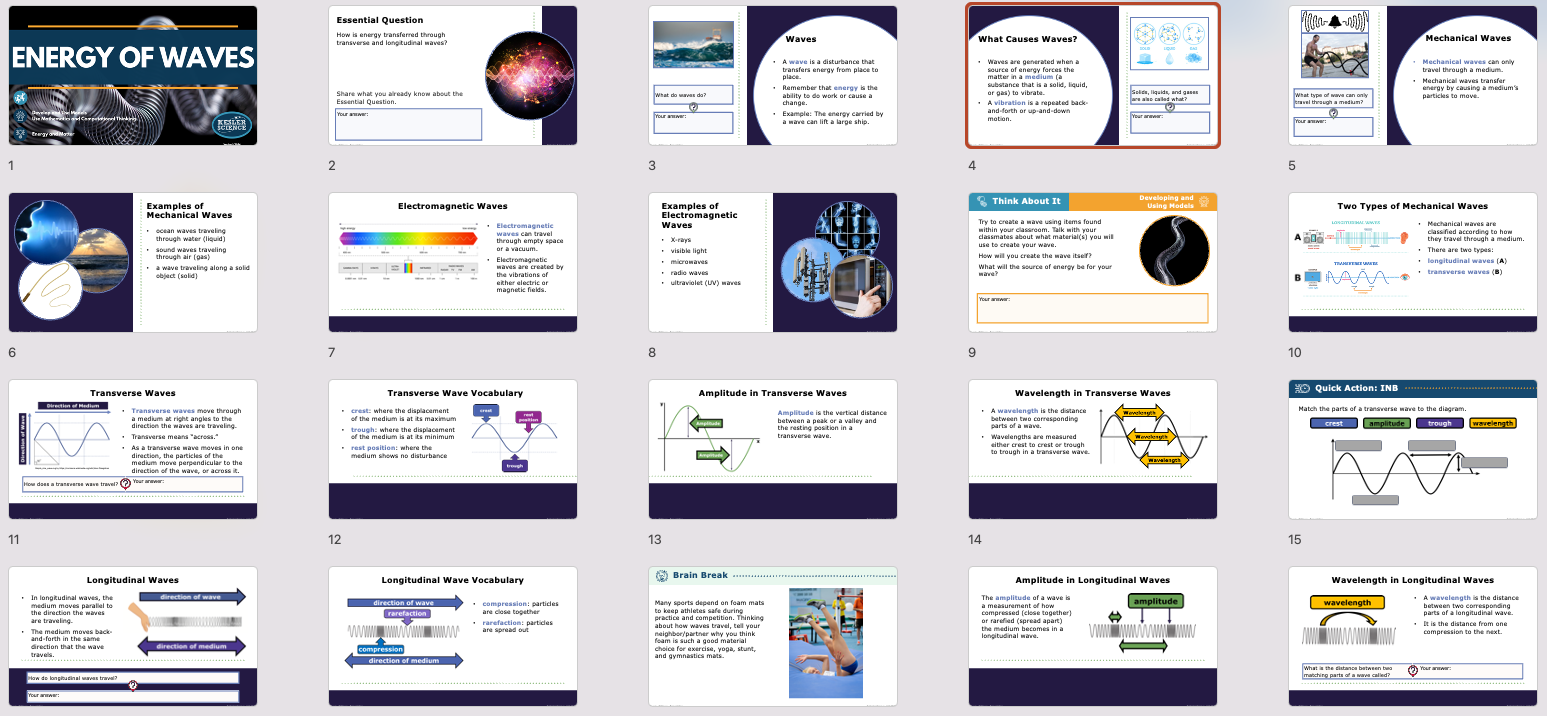

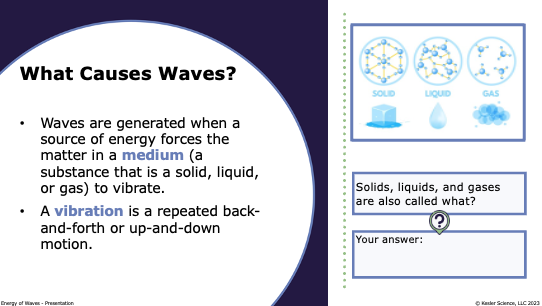

The Energy of Waves Presentation walks 6th graders through the full scope of TEKS 6.8C, one concept at a time, with diagrams on nearly every slide. The deck opens with a quick reset on what a wave actually is (a disturbance that transfers energy from place to place) and the idea that waves carry energy, not matter. A wave on the ocean can lift a giant ship, but the water itself mostly stays put. From there the deck splits waves into two big categories: mechanical waves, which need a medium (solid, liquid, or gas) to travel through, and electromagnetic waves, which can travel through empty space.

Then the deck zooms in on the comparison the standard is really asking for: transverse vs. longitudinal. Students learn that transverse waves move the medium perpendicular ("across") to the direction the wave is traveling. The classic picture is a wiggly sine curve with a high point (crest) and a low point (trough). The amplitude is the vertical distance from the rest position to the crest or trough, and the wavelength is the distance from one crest to the next. Light, water surface waves, and any wave you make by shaking a slinky side to side are transverse.

Then the deck shifts to longitudinal waves: the medium moves parallel to the direction the wave is traveling, in a back-and-forth squeezing pattern. The high-density spots are called compressions and the low-density spots are called rarefactions. Amplitude in a longitudinal wave is how compressed or stretched the medium gets. Wavelength is the distance from one compression to the next. Sound waves traveling through air are the classic example. Slinky pushes and pulls are another. The deck includes a Quick Action INB where students match wavelength, amplitude, crest, trough, compression, and rarefaction to the right wave type. Then it introduces frequency (number of waves per second, measured in hertz) and speed (how far a wave travels in a given time) and explains how the three are related.

The deck closes by putting all of it together with the core idea of the standard: waves transfer energy from one place to another without transferring matter. Students see that floating bottles bob in place as ocean waves pass, that air molecules vibrate in place as sound passes by, and that a piece of tape on a slinky stays roughly in one spot while the wave travels the length of the slinky. The Brain Break asks them to brainstorm five different ways waves affect their everyday life, which usually surfaces examples from outside the deck (microwaves, Wi-Fi, X-rays, dog whistles) that turn the whole thing into a conversation.

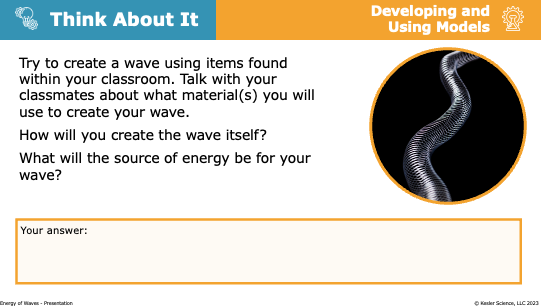

What makes this Presentation different from a typical waves slideshow is that kids are doing something on almost every single slide. It's not a lecture deck. It's a participation deck. "Your answer:" prompts appear on most slides, Brain Breaks reset attention every few slides, Quick Action INB tasks show up throughout, and Think About It prompts push deeper into bigger ideas (designing a classroom-built wave, explaining why foam is great for athletic mats). The deck closes with a Check for Understanding tied back to the Essential Question.

The Explain materials in this product include:

• An editable 28-slide Presentation at two differentiated levels (Dependent and Modified), works in PowerPoint or Google Slides
• A guided fill-in-the-blank student notes handout that mirrors the Presentation, with answer key
• A Paper Interactive Notebook (English and Spanish) students cut, fold, and glue into their notebooks
• A Digital Interactive Notebook at both levels with answer keys, for 1:1 classrooms or Google Classroom

The Explain runs across two class periods. The built-in Think About It prompts are where the real discussion happens, so let those breathe.

🛠️ Elaborate

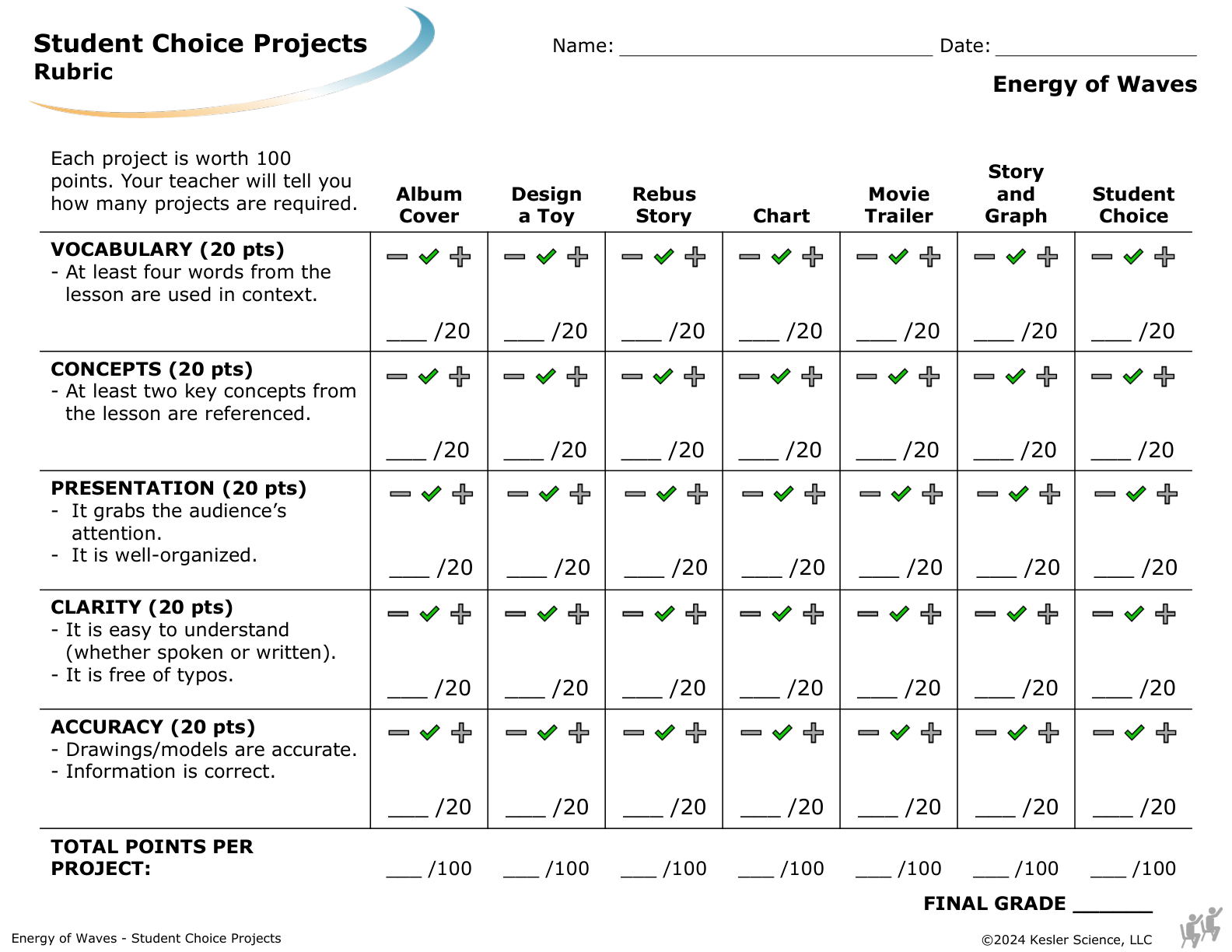

The Elaborate phase is where students stretch what they learned about waves and energy and put it into a project of their choosing. In this 6th grade energy lesson, that's a Student Choice Project board with six different project options plus a "design your own" pathway.

Students might design a poster comparing transverse and longitudinal waves with five labeled real-world examples of each, build a model demonstrating how sound waves travel through a coiled spring or a row of dominoes, or record a short podcast where they interview a slinky about its career as both a transverse and a longitudinal wave. There are options for kids who love to write, kids who love to draw, kids who love to build, and kids who love to perform. Whatever the project, the point is the same: students apply wave types and how waves transfer energy without transferring matter to a real-world artifact instead of a worksheet.

Choice is the whole point. By letting students pick how they show their thinking, you get more authentic work for TEKS 6.8C and you actually get to see what they understand about waves.

Two differentiated versions in one file

The standard version is for students ready for independent application. The Reinforcement version is for students who need additional vocabulary or concept support. Three of the six options are swapped for projects with a tighter vocabulary tie-in, and "design your own" is replaced with "collaborate with the teacher" so kids aren't pitching cold.

✅ Evaluate

The Evaluate phase wraps the unit with a formal assessment. It's not all bubble-in. Several questions hand students wave diagrams and ask them to identify the wave type, label its parts, and explain how energy is moving without the matter moving.

The full assessment has 12 questions across five formats:

• Multiple choice (4 questions) covering wave anatomy, wave types, and the difference between transferring energy and transferring matter
• Hotspot / visual (2 questions) where students circle the crest, trough, compression, or rarefaction on a wave diagram and describe what that part represents
• Multiselect (2 questions) where students pick all properties that apply to a given wave
• Short answer (2 questions) comparing and contrasting transverse and longitudinal waves in their own words
• Multipart scenario (2 questions) with a slinky-and-tape diagram where students explain why the tape doesn't travel with the wave and how this proves waves transfer energy without matter

A modified version is included for students who need additional support. Fewer multiple-choice distractors, sentence-starter scaffolds on the short-answer items.

If you've taught all five phases, this assessment shouldn't surprise anyone. It's a chance for kids to show you they get it.
