Modeling Layers of Earth Lesson Plan (TEKS 6.10B): A Complete 5E Lesson for the Crust, Mantle, Outer Core, and Inner Core

Chris Kesler · 10 min read

For years, my students would tell me "the center of the Earth is lava" the same way they'd tell me the sky is blue. I'd draw the four layers on the board, we'd label them, we'd do the worksheet, and that one sentence would still show up on the test. Defining it didn't fix it. Repeating it didn't fix it.

What finally broke through was bringing in a squishy stress ball and putting it in a kid's hand. "Squeeze it as hard as you can. Feel how it pushes back? Now imagine the entire weight of Earth pushing in on iron at the center. That's why the inner core stays solid, even though it's hotter than any lava you've ever seen." Once kids could feel pressure as a force, the idea that the hottest layer is also the solid one stopped feeling like a trick question.

That same pressure idea drives this 5E lesson for TEKS 6.10B. The verb is model and describe, and the trick is teaching students that temperature AND pressure both increase with depth. Skip either one and the layers stop making sense.

⏱ 10 class periods 📓 6th Grade Earth Science 🧪 TEKS 6.10B 🎯 Differentiated for D + M 💻 Print or Digital

Inside the Modeling Layers of Earth 5E Lesson

The 5E instructional model walks students through five phases: Engage, Explore, Explain, Elaborate, and Evaluate. It flips the traditional lecture-first sequence on its head. Students explore a concept hands-on before you ever explain it, which means by the time you do explain it, they have something to hook the vocabulary onto.

I switched to the 5E model years ago and stopped going back. Kids retain more, ask better questions, and stop staring at me waiting to be told the answer. The Modeling Layers of Earth 5E Lesson is built on this framework from start to finish. Here's how it plays out across the five phases.

🎯 Engage

📷 Engage image — objective slide OR word wall card

Day one is a teacher-led hands-on modeling activity that uses a hard-boiled egg as a stand-in for Earth. Each student (or small group) gets an egg, a plastic knife, and a student sheet. Following the step-by-step teacher directions, they carefully cut the egg in half and identify the parallels: the thin shell (the crust), the white (the mantle), the yolk (the core). Then they sketch what they see, label the parallels to Earth's real layers, and start talking about where the model holds up and where it breaks.

By the end of the period, kids have a labeled sketch in their own hand and they can explain in their own words why the inner part of Earth is hot while the outside is cool. Nobody has heard a vocabulary lecture yet. That's the point. They're walking into the rest of the unit with a working mental model, not a memorized list of four layers.

What's included in the Engage:

Teacher directions for the egg-modeling activity
Printable student observation sheet
Answer key for the discussion questions

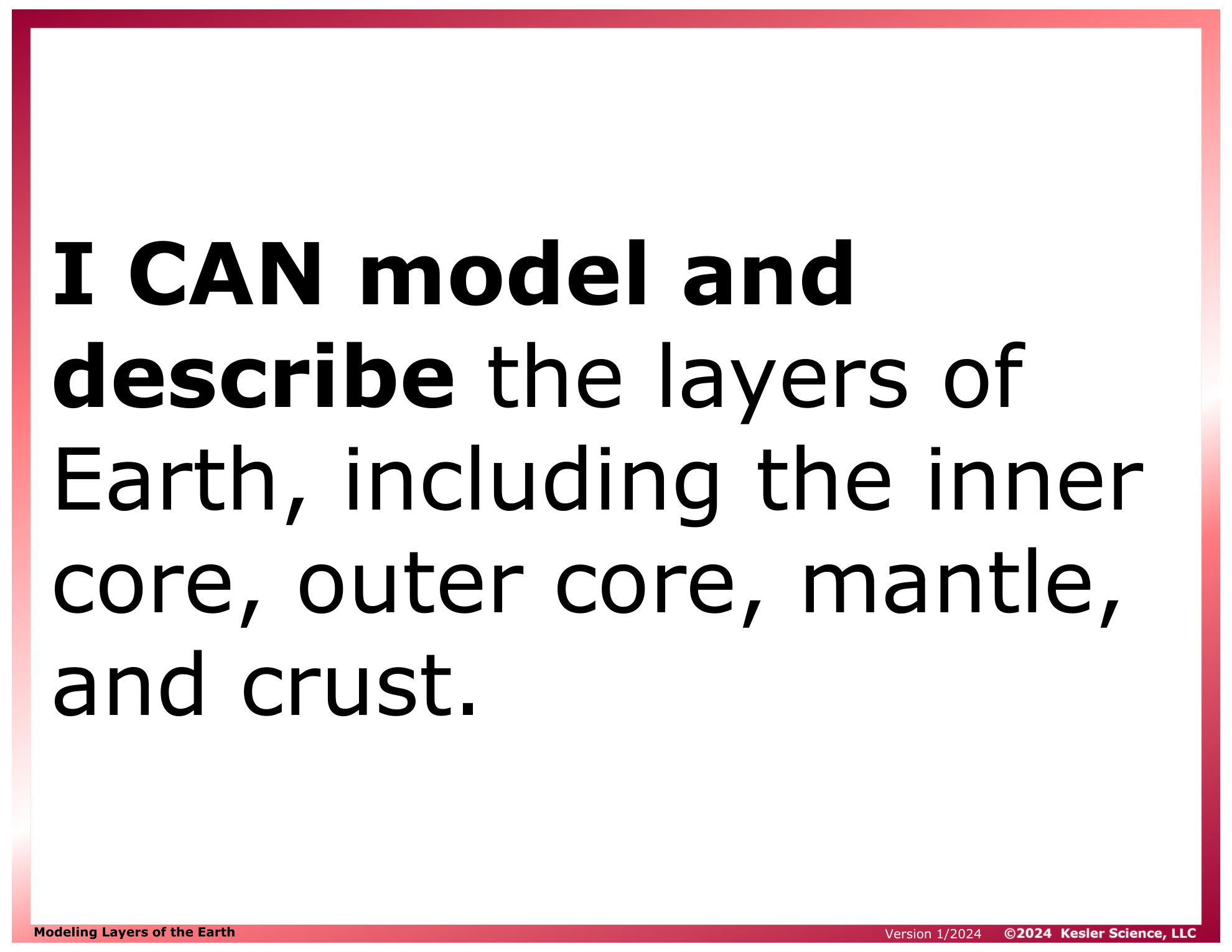

Four learning objective slides (standard verbatim, "Model and describe" highlighted, "I CAN...", and "WE WILL...")
An illustrated Layers of Earth Word Wall in English and Spanish covering the full unit vocabulary

🔬 Explore

📷 Explore image 1 — wide shot of Station Lab in action

The Modeling Layers of Earth Station Lab is the heart of the Explore phase. Students rotate through 8 stations (plus a 9th challenge station for early finishers) over one class period. The Station Lab is split into four input stations (where kids take in new information) and four output stations (where they show what they learned).

The four input stations:

🎬 Watch It! — Students watch a short video on Earth's four layers and answer guided questions.
📖 Read It! — A one-page reading passage at two differentiated levels, with a Spanish version included.
🔬 Explore It! — A modeling task using clay or play dough where students build a scale-aware cross-section of Earth's four layers.

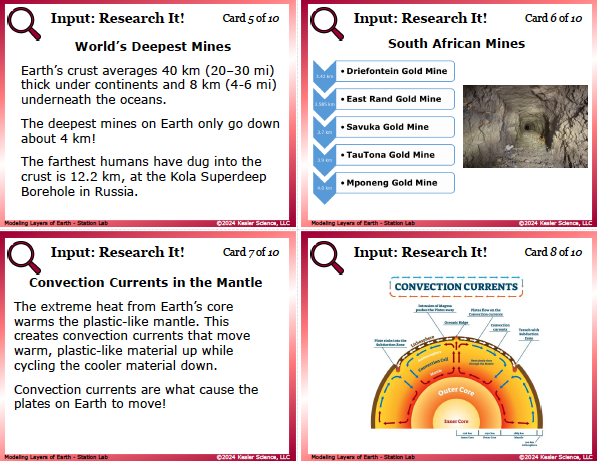

💻 Research It! — Reference cards on each layer's composition, thickness, temperature, and state.

The four output stations:

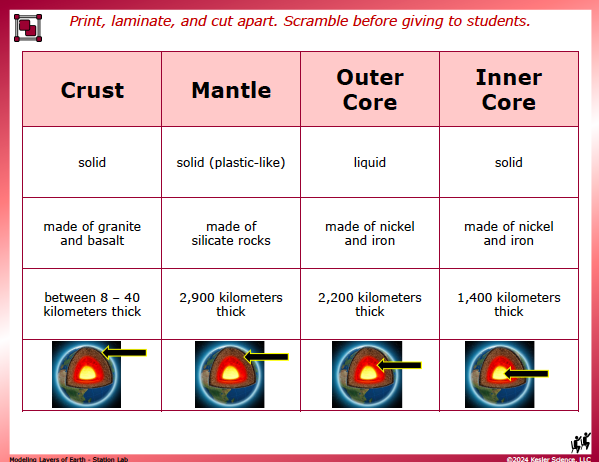

📋 Organize It! — A card sort where students match each layer with its properties (composition, state, temperature, thickness).
🎨 Illustrate It! — Students draw a labeled cross-section of Earth with all four layers and key facts about each.
✍️ Write It! — Three open-ended questions in complete sentences (this is where you see who really gets the temperature-pressure relationship).
📝 Assess It! — A short formative check with multiple choice and a fill-in-the-blank vocabulary paragraph.

📷 Explore image 2 — close-up of featured station (Explore It! or Organize It!)

Print and digital versions are both included. If you want the full breakdown of what happens at every single station, what students produce, and how to set it up, that's in our dedicated Station Lab post.

→ Read the full Modeling Layers of Earth Station Lab walkthrough 8 stations, materials list, teacher tips

The Station Lab is included in the full 5E lesson. You don't need to buy it separately if you're getting the whole unit.

📚 Explain

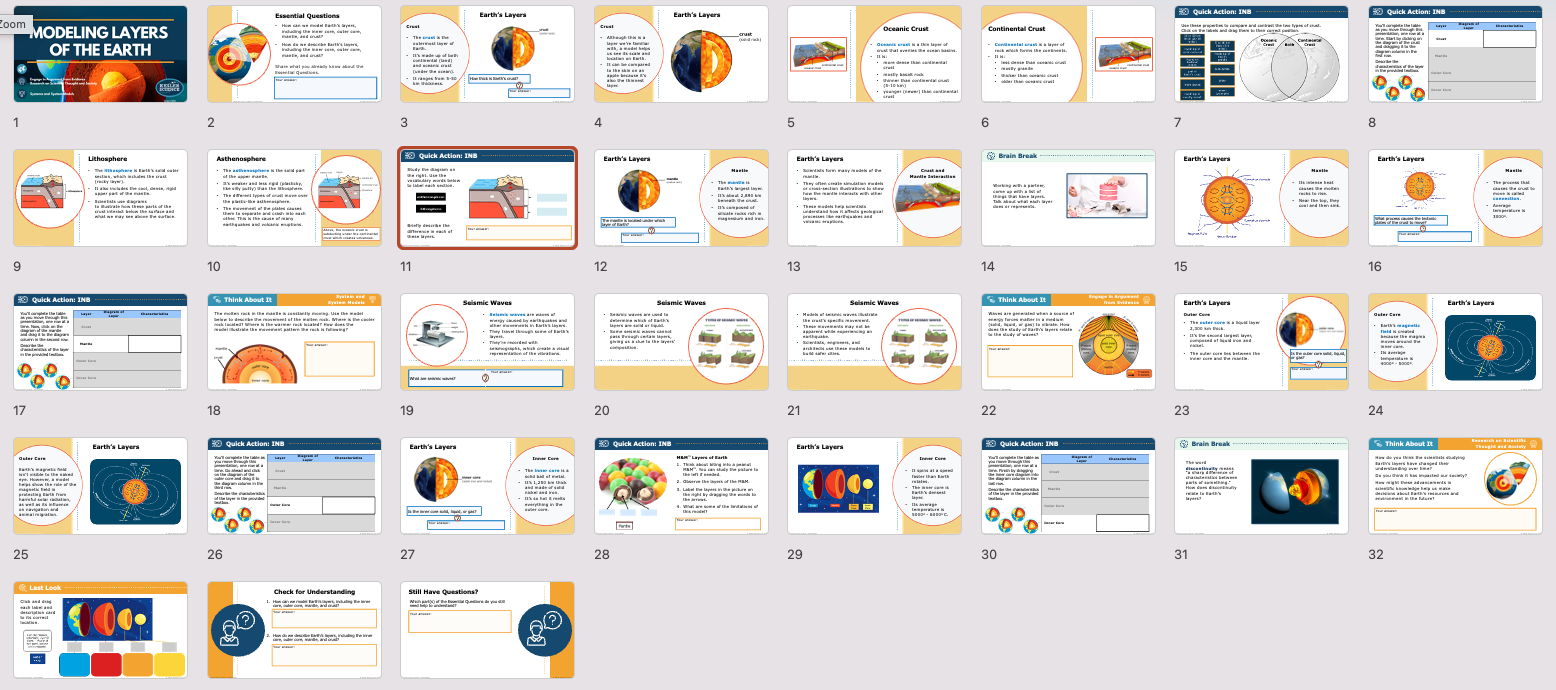

📷 Explain image 1 — Presentation slide screenshot

Here's the real payoff of doing the Engage and Explore before the Explain: by the time kids hit this phase, they've already built models of Earth's layers with their hands. They have a working understanding of "thin crust, thick mantle, hot core" before you ever start naming things formally. The discussions get deeper, the questions get sharper, and you spend less time defining and more time pushing their thinking.

The Modeling Layers of Earth Presentation walks 6th graders through the full scope of TEKS 6.10B, one layer at a time, with cross-section diagrams on nearly every slide. The deck opens with a quick reset on Earth as a layered system and then builds outward from the surface: the crust (the thin, solid outer shell, 5 to 70 km thick, split into continental and oceanic crust), the mantle (the thickest layer, about 2,890 km, made of silicate rocks that flow slowly), the outer core (a liquid layer of iron and nickel that generates Earth's magnetic field), and the inner core (a solid ball of iron and nickel at the center, kept solid by enormous pressure).

📷 Explain image (middle) — Presentation slide screenshot (classification hierarchy, Essential Question, or category comparison)

Students learn the properties of each layer: the crust is thin and solid, the mantle is solid rock that flows slowly because of intense heat, the outer core is liquid metal, and the inner core is solid metal despite being the hottest part of the planet. The deck pairs each layer with the model that helps students see it (an apple skin for the crust, silly-putty for the asthenosphere, and an M&M-style cross-section for the whole Earth).

The temperature-and-pressure piece is where this lesson earns its keep. Students see graphs and diagrams showing both temperature and pressure increasing with depth. They learn that the inner core is solid not because it's cooler, but because the weight of everything above it presses iron atoms so tightly together that they cannot flow as a liquid. The deck also introduces seismic waves as the evidence scientists use to study layers we cannot directly observe. Some waves pass through liquid, some only pass through solid, and the pattern of which waves go where is how we know what's down there.

📷 Explain image 2 — Presentation slide screenshot

For every layer, students see multiple model types — labeled cross-sections, comparison diagrams, and 3-D scale models. That repetition (different layers, same model types) is what bakes the model and describe verb of TEKS 6.10B into long-term memory.

What makes the Modeling Layers of Earth Presentation different from a typical Earth science slideshow is that kids are doing something on almost every single slide. It's not a lecture deck. It's a participation deck. "Your answer:" prompts appear on most slides, Brain Breaks reset attention every few slides, Quick Action INB tasks (a continental-vs-oceanic crust comparison, a layer-labeling drag-and-drop, an M&M layers activity) show up throughout, and Think About It prompts push deeper into bigger ideas like how seismic waves provide evidence for what we cannot see. The deck closes with a Check for Understanding tied back to the Essential Question.

The Explain materials in this product include:

An editable 35-slide Presentation at two differentiated levels (Dependent and Modified), works in PowerPoint or Google Slides
A guided fill-in-the-blank student notes handout that mirrors the Presentation, with answer key
A Paper Interactive Notebook (English and Spanish) students cut, fold, and glue into their notebooks
A Digital Interactive Notebook at both levels with answer keys, for 1:1 classrooms or Google Classroom

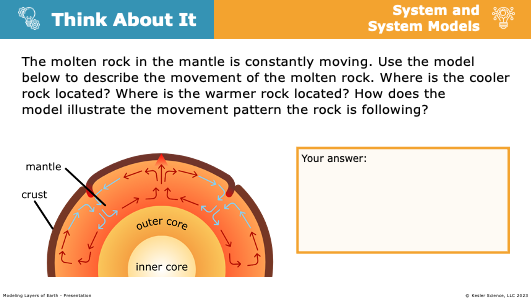

The Explain runs across two class periods. The built-in Think About It prompts are where the real discussion happens, so let those breathe.

🛠️ Elaborate

📷 Elaborate image — Student Choice Project board or sample student work

The Elaborate phase is where students stretch what they learned about Earth's layers and put it into a project of their choosing. In this 6th grade Earth science lesson, that's a Student Choice Project board with six different project options plus a "design your own" pathway.

Students might build a scale-accurate 3-D model of Earth's four layers using clay, foam, or recycled materials with each layer labeled with composition, state, and temperature, or they might design a children's book that follows a single drop of magma on a journey from the outer core up to the surface. There are options for kids who love to write, kids who love to draw, kids who love to build, and kids who love to perform. Whatever the project, the point is the same: students apply the crust, mantle, outer core, and inner core framework to a real artifact instead of a worksheet.

Choice is the whole point. By letting students pick how they show their thinking, you get more authentic work for TEKS 6.10B and you actually get to see what they understand about modeling Earth's interior.

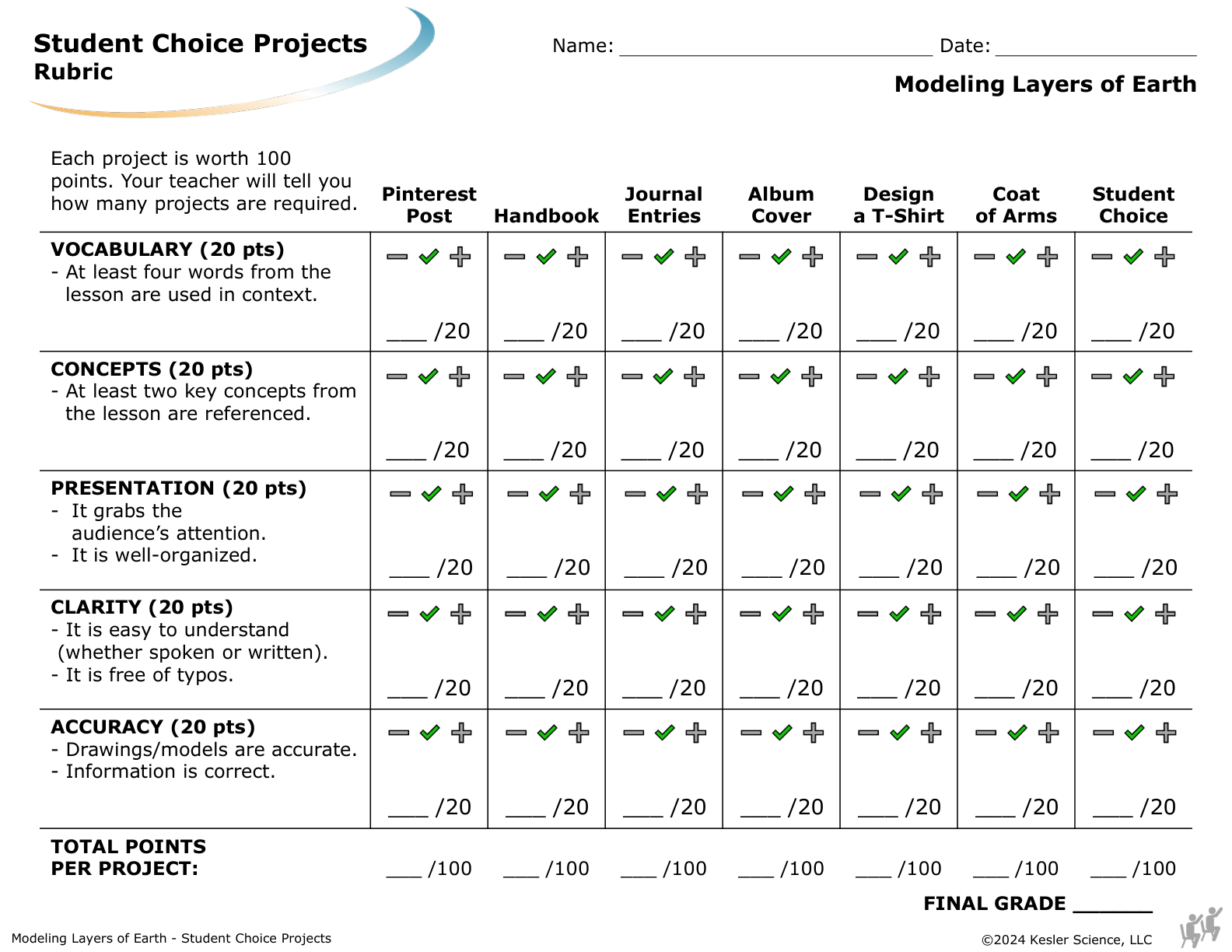

The rubric (the part teachers actually want)

Every project, no matter which option a student picks, is graded on the same rubric. Five categories at 20 points each:

Vocabulary (20 pts): At least four words from the lesson are used in context.
Concepts (20 pts): At least two key concepts from the lesson are referenced.
Presentation (20 pts): The project grabs attention and is well-organized.
Clarity (20 pts): Easy to understand. Free of typos.
Accuracy (20 pts): Drawings and models are accurate. The science is right.

Two differentiated versions in one file

The standard version is for students ready for independent application of Earth's interior. The Reinforcement version is for students who need additional vocabulary or concept support — three of the six options are swapped for projects with a tighter vocabulary tie-in, and "design your own" is replaced with "collaborate with the teacher" so kids aren't pitching cold.

✅ Evaluate

The Evaluate phase wraps the unit with a formal assessment. It's not all bubble-in. Several questions hand students a cross-section of Earth and ask them to label layers and explain why a specific layer behaves the way it does.

The full assessment has 12 questions across five formats:

Multiple choice (4 questions) covering layer names, composition, state, and the temperature-pressure relationship
Hotspot / visual (2 questions) where students label layers on a cross-section diagram
Multiselect (2 questions) where students pick all the properties that describe a target layer
Short answer (2 questions) on how seismic waves provide evidence for layers we cannot directly observe
Multipart scenario (2 questions) with a 3-student classroom debate where kids identify which reasoning about the inner core is correct

A modified version is included for students who need additional support — fewer multiple-choice distractors, sentence-starter scaffolds on the short-answer items.

If you've taught all five phases, this assessment shouldn't surprise anyone. It's a chance for kids to show you they get it.

How everything fits together

If you want the whole experience (Engage hook, the Station Lab as the Explore, the Explain day with Presentation and interactive notebook, the Student Choice Elaborate, and the Evaluate assessment all in one download), that's the Modeling Layers of Earth Complete 5E Science Lesson.

If you only need the one-day hands-on activity, the Station Lab works as a standalone. Most teachers buy the full 5E because the Station Lab works harder when it's bookended by a strong Engage and a follow-up Explain. But both are honest options.

Two options

Modeling Layers of Earth Complete 5E Lesson cover

Full 5E Lesson — ~10 class periods $13.20 Get the 5E Lesson

Modeling Layers of Earth Station Lab cover

Just the Station Lab — 1–2 class periods $7.20 Get the Station Lab

What you need to teach Modeling Layers of Earth (TEKS 6.10B)

Materials beyond what's in the download:

Hard-boiled eggs for the Engage activity (one per student or one per small group, plus plastic knives)
Modeling clay or play dough in 4 colors for the Station Lab Explore It! cross-section task

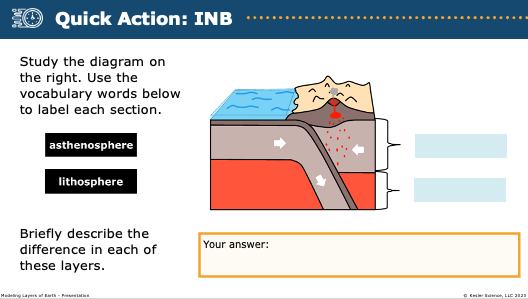

A bag of peanut M&Ms or similar layered candy for the Quick Action INB layered-model task (optional but recommended)
Pencils, colored pencils or markers, scissors, glue sticks, and printed student pages
A device with internet for the Watch It! station and the slide deck

Standard covered: Texas TEKS 6.10B — Model and describe the internal structure of Earth, including the crust, mantle, outer core, and inner core, and how temperature and pressure change with depth. See the full standard breakdown →

Grade level: 6th grade science

Time: About 10 class periods of 45 minutes each, done with fidelity. The product also ships with a compressed sample unit plan if you need to move faster.

Common misconceptions this lesson clears up

"The whole center of the Earth is liquid lava"
This one is almost universal. Only the outer core is liquid, and it's not lava. It's molten iron and nickel. The inner core at the very center is solid iron and nickel. Pressure from the weight of everything above it keeps the inner core compressed into a solid even though it's hotter than the outer core. "Lava" is also the wrong word for the inside of Earth. Lava is what molten rock is called once it's above ground.
"The mantle is liquid because there's magma in it"
The mantle is mostly solid rock. It's extremely hot and it can flow very slowly, over millions of years, which is what allows the tectonic plates to move. Small amounts of magma form in specific places in the upper mantle and crust, but the mantle as a whole is not a sea of liquid. Think slow-flowing solid, not lake of liquid.
"Each layer is about the same thickness"
The layers vary enormously in thickness. The crust is the thinnest, as little as about 5 kilometers under the oceans and up to roughly 70 kilometers under tall mountains. The mantle is by far the thickest, extending about 2,900 kilometers down. The outer core and inner core together make up the rest. A proper-scale drawing looks very different from the evenly-striped cross-sections in many textbooks.
"Temperature increases with depth but pressure stays the same"
Both temperature AND pressure increase as you go deeper into Earth. Pressure increases because every additional kilometer of rock above adds to the weight pressing down. This is the key to explaining why the inner core is solid while the outer core is liquid. Without the pressure half of the story, the layers stop making sense.

What's included in the Modeling Layers of Earth 5E Lesson download

📷 Inside-the-product — add screenshot of Read It passage or sample answer sheet

When you buy the Modeling Layers of Earth Complete 5E Lesson, you get a single download with the whole unit:

✅ Engage materials — teacher directions, student observation sheet, answer key, four learning objective slides, illustrated Layers of Earth Word Wall (English + Spanish)
✅ The full Station Lab — 8 stations + 1 challenge, print and digital, two reading levels, Spanish Read It!
✅ Explain materials — editable 35-slide Presentation at two differentiated levels (with built-in Brain Breaks, Quick Action INB tasks, and Think About It prompts), guided fill-in-the-blank student notes handout with answer key, Paper Interactive Notebook (English + Spanish), Digital Interactive Notebook at two levels with answer keys
✅ Elaborate (Student Choice Projects) — 6 project options + design-your-own, plus a Reinforcement version with vocabulary-focused alternatives, 5-category rubric included
✅ Summative assessment — full 12-question version and modified version with sentence-starter scaffolds, both with answer keys
✅ Sample unit plan — day-by-day pacing guide

A couple of real-talk tips from running this lesson

1. Always pair temperature with pressure.

If you teach "it gets hotter as you go deeper" without also teaching "it gets more pressurized as you go deeper," kids will never figure out why the inner core is solid. The two ideas have to live together.

2. Show the M&M model, then break the M&M model.

The M&M cross-section is a great visual, but the thicknesses are wrong. Show it, then sketch a real-scale version next to it. Kids learn what models do well and where they fall apart, which is its own piece of science thinking.

3. Treat seismic waves as the "evidence" lesson.

Don't gloss over the seismic-wave slides. They're the answer to the question "how do we know any of this?" Five extra minutes here pays off when students ask how scientists figured out the layers without ever drilling that deep.

Get the Modeling Layers of Earth 5E Lesson

Buy the full Modeling Layers of Earth 5E Lesson — $13.20

Or if you only need the one-day hands-on Station Lab:

Buy the Modeling Layers of Earth Station Lab — $7.20

(The Station Lab is included in the full 5E Lesson)

Frequently asked questions

Does this cover all of TEKS 6.10B?

Yes. The full standard is addressed across all five phases, including the temperature-and-pressure-change-with-depth piece that lots of resources skip.

What do my students need to know before this lesson?

A basic understanding that Earth is round and has solid ground under our feet. If your kids can describe what a solid, liquid, and gas are, they're ready.

How long does it take to teach?

Done with fidelity, about 10 class periods of 45 minutes each: one day for the egg-modeling Engage, two days for the Station Lab, two days for the Presentation and Interactive Notebook, three days for the Student Choice Project, and one to two days for review and the assessment.

Do I need special supplies?

Just hard-boiled eggs for the Engage and modeling clay or play dough for the Station Lab. Most teachers already have both on hand or can grab them easily.

Does this work for digital classrooms?

Yes. Every component has a digital version. The Station Lab is fully digital-ready (Google Slides), the Presentation works in Google Slides, and the Student Choice Projects can be submitted as videos, slide decks, or written work.

Is this 5E lesson aligned to NGSS too?

It aligns most directly with MS-ESS2-1 and MS-ESS2-2 (developing models of Earth's systems and the processes that shape Earth). Built TEKS-first, but the standards overlap heavily.
