Electrical Circuits Lesson Plan (TEKS 5.8B): A Complete 5E Lesson for Circuits, Energy Transformations, and Conductors

Inside the Electrical Circuits 5E Lesson

The 5E instructional model walks students through five phases: Engage, Explore, Explain, Elaborate, and Evaluate. It flips the traditional lecture-first sequence on its head. Students explore a concept hands-on before you ever explain it, which means by the time you do explain it, they have something to hook the vocabulary onto.

I switched to the 5E model years ago and stopped going back. Kids retain more, ask better questions, and stop staring at you waiting to be told the answer. The Electrical Circuits 5E Lesson is built on this framework from start to finish. Here's how it plays out across the five phases.

🎯 Engage

Day one is a teacher-led hands-on hook where every group gets a D-cell battery, a small mini bulb, and a single piece of wire (or alligator clip). The challenge: light the bulb. Don't explain anything. Just let them figure it out.

Some groups get it in 30 seconds. Some take five minutes. Every group eventually lands on the same realization: both ends of the battery have to be connected to the bulb to make a complete loop. By the end of the period, kids have a sketch of a working circuit in their own hand and can describe what happens when you disconnect any one piece. They're walking into the rest of the unit with the central idea already built.

What's included in the Engage:

• Teacher directions for the light-the-bulb challenge
• Printable student observation sheet
• Answer key for the discussion questions

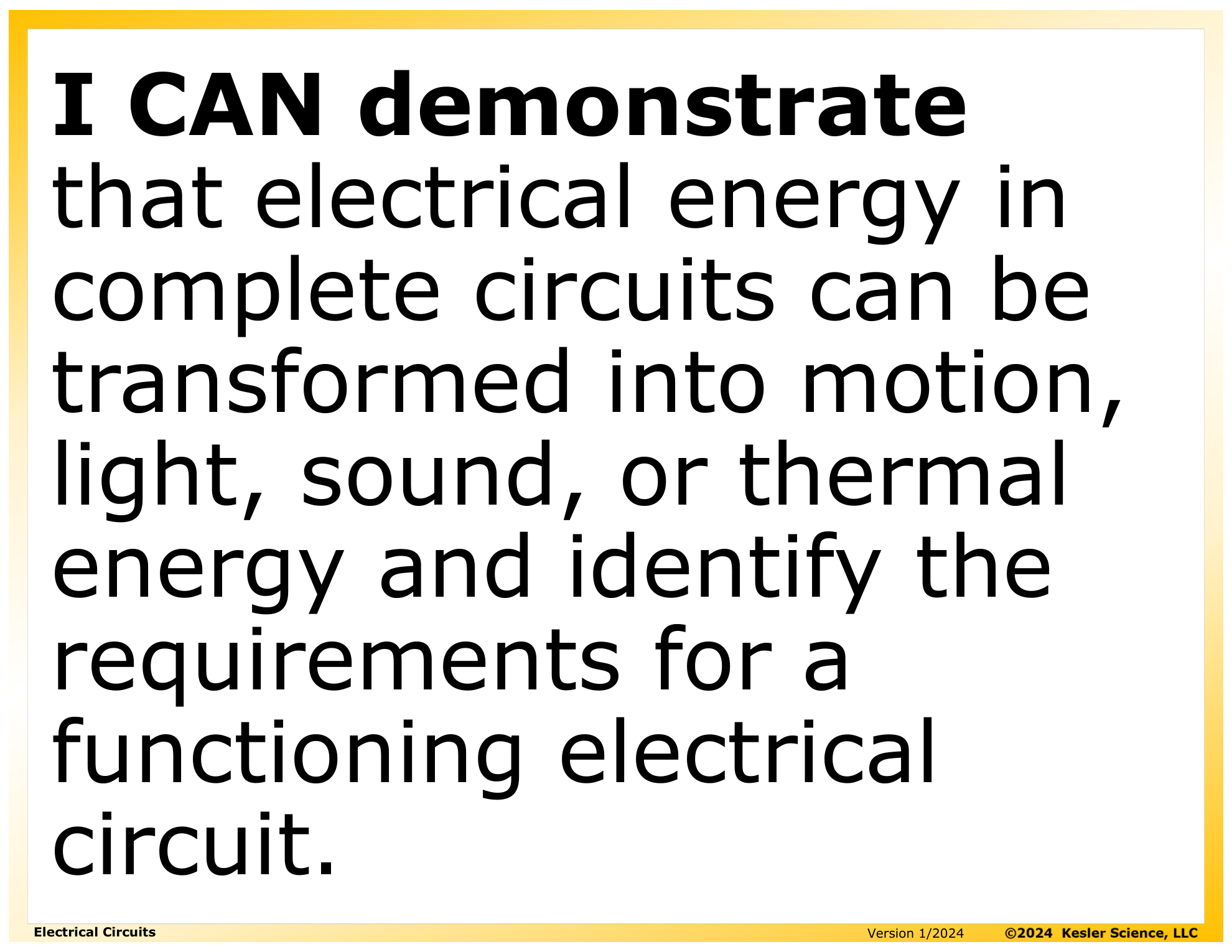

• Four learning objective slides (standard verbatim, key verbs highlighted, "I CAN...", and "WE WILL...")
• An illustrated Circuits Word Wall in English and Spanish covering the full unit vocabulary

🔬 Explore

The Electrical Circuits Station Lab is the heart of the Explore phase. Students rotate through 8 stations (plus a 9th challenge station for early finishers) over one class period. The Station Lab is split into four input stations (where kids take in new information) and four output stations (where they show what they learned).

The four input stations:

• 🎬 Watch It! — Students watch a short video on electrical circuits and answer guided questions.
• 📖 Read It! — A one-page reading passage at two differentiated levels, with a Spanish version included.
• 🔬 Explore It! — A hands-on station with snap circuits or a battery, bulb, wire, and switch kit where students build series and parallel circuits.

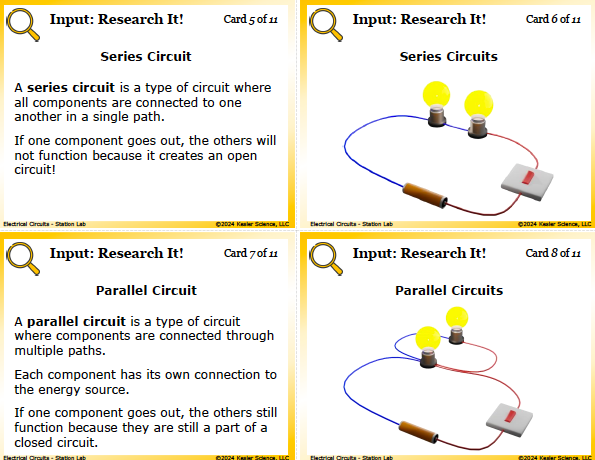

• 💻 Research It! — Reference cards covering circuit components, open versus closed circuits, conductors and insulators, and energy transformations from electricity to motion, light, sound, and heat.

The four output stations:

• 📋 Organize It! — A 12-card sort where students place circuit components under energy source, conductor, and load.
• 🎨 Illustrate It! — Students draw a series circuit and a parallel circuit with labeled components.
• ✍️ Write It! — Three open-ended questions in complete sentences (this is where you see who really gets it).

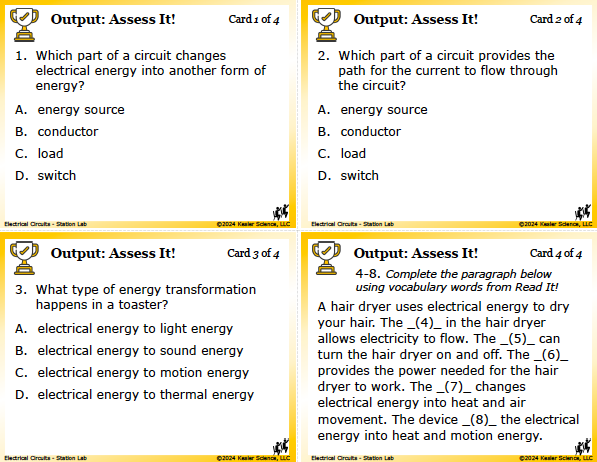

• 📝 Assess It! — A short formative check with multiple choice and a fill-in-the-blank vocabulary paragraph.

Print and digital versions are both included. If you want the full breakdown of what happens at every single station, what students produce, and how to set it up, that's in our dedicated Station Lab post.

→ Read the full Electrical Circuits Station Lab walkthrough 8 stations, materials list, teacher tips

The Station Lab is included in the full 5E lesson. You don't need to buy it separately if you're getting the whole unit.

📚 Explain

Here's the real payoff of doing the Engage and Explore before the Explain: by the time kids hit this phase, they've already built a working circuit with their own hands. They have a working understanding before you ever start naming things. The discussions get deeper, the questions get sharper, and you spend less time defining and more time pushing their thinking.

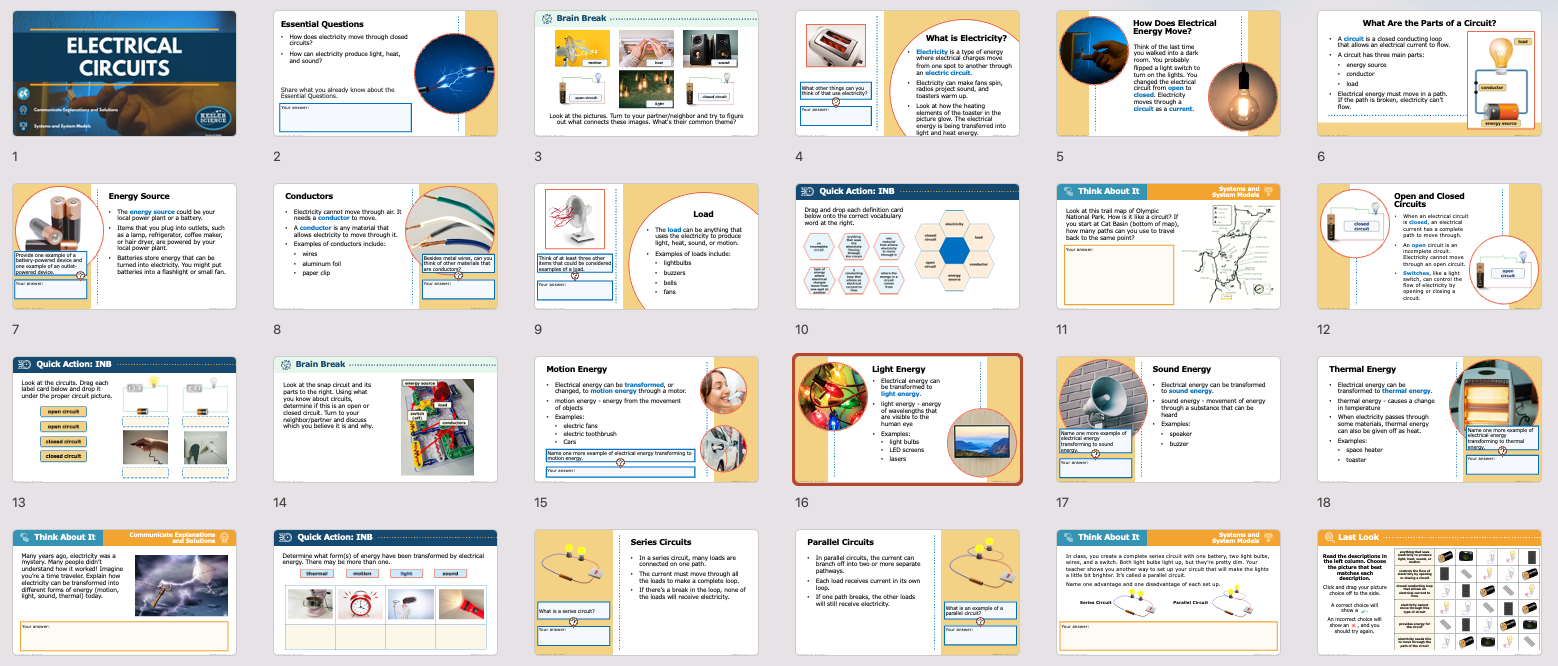

The Electrical Circuits Presentation walks 5th graders through the full scope of TEKS 5.8B, one concept at a time. The deck opens with a quick reset on what electricity is (a type of energy where electrical charges move from one spot to another) and then builds out the framework: every circuit needs three things to work, and once electricity flows, it can be transformed into other forms of energy.

Students learn the three required parts of every working circuit. The energy source provides the electrical energy. That's a battery for portable devices and a wall outlet (connected to the power plant) for plugged-in devices. The conductor is the path the electricity flows through. Wires, aluminum foil, and paper clips work as conductors because they're made of metals that let electricity pass through. The load is whatever uses the electrical energy: a lightbulb, a buzzer, a fan, a motor. The deck includes a Quick Action drag-and-drop where students sort components into those three buckets.

From there the lesson covers open versus closed circuits. A closed circuit has a complete, unbroken path, so electricity flows and the load works. An open circuit has a break in the path (like a switch in the "off" position), so electricity can't flow and nothing happens. A switch is just a tool for opening and closing a circuit on purpose. Students see how this plays out in everyday life: when you flip a light switch up, you close the circuit and the light comes on. Flip it down and the circuit opens. Same idea every time.

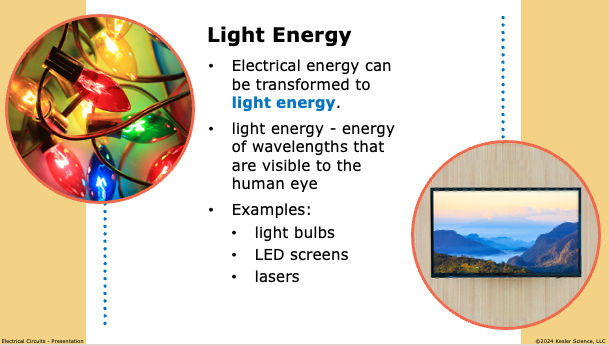

The energy transformation piece ties the whole lesson back to 5.8A. Electrical energy doesn't just sit in a wire. Once it reaches the load, it becomes something useful. Electric fan? Electrical energy becomes motion. Lightbulb or LED screen? Electrical becomes light. Speaker or buzzer? Electrical becomes sound. Toaster or space heater? Electrical becomes thermal energy (heat). One circuit can produce more than one form. A toaster makes heat AND light at the same time. The deck wraps up with the difference between series circuits (one path, all loads connected in a line, one break stops everything) and parallel circuits (multiple paths, each load on its own branch, one break doesn't stop the others).

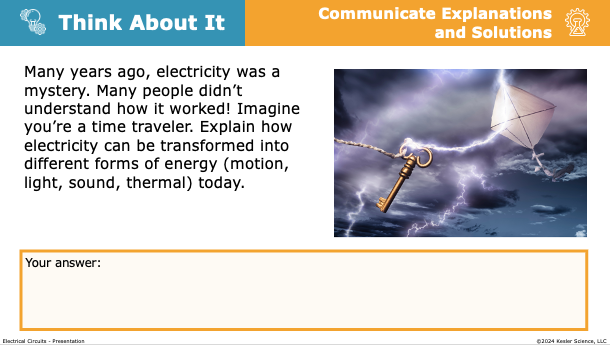

What makes the Electrical Circuits Presentation different from a typical circuits slideshow is that kids are doing something on almost every single slide. It's not a lecture deck. It's a participation deck. "Your answer:" prompts appear on most slides, Brain Breaks reset attention every few slides, Quick Action INB tasks (sorting components, identifying open versus closed circuits, matching electricity to its transformed energy form) show up throughout, and Think About It prompts push deeper into scenarios about brighter bulbs and time-traveling explanations of electricity. The deck closes with a Check for Understanding tied back to the Essential Questions about how electricity moves through closed circuits and how it produces light, heat, and sound.

The Explain materials in this product include:

• An editable Presentation at two differentiated levels (Dependent and Modified), works in PowerPoint or Google Slides
• A guided fill-in-the-blank student notes handout that mirrors the Presentation, with answer key
• A Paper Interactive Notebook (English and Spanish) students cut, fold, and glue into their notebooks
• A Digital Interactive Notebook at both levels with answer keys, for 1:1 classrooms or Google Classroom

The Explain runs across two class periods. The built-in Think About It prompts are where the real discussion happens, so let those breathe.

🛠️ Elaborate

The Elaborate phase is where students stretch what they learned about electrical circuits and put it into a project of their choosing. In this 5th grade physical science lesson, that's a Student Choice Project board with six different project options plus a "design your own" pathway.

Students might design a poster of a series and parallel circuit for the same set of holiday lights, build a working circuit that lights up a model house, write a comic strip explaining what would happen if you accidentally created a short circuit, or film a tutorial showing a younger student how to build their first circuit. There are options for kids who love to write, kids who love to draw, kids who love to build, and kids who love to perform. Whatever the project, the point is the same: students apply circuit components, open versus closed, conductors, and electrical energy transformations to a real-world artifact instead of a worksheet.

Choice is the whole point. By letting students pick how they show their thinking, you get more authentic work for TEKS 5.8B and you actually get to see what they understand about circuits.

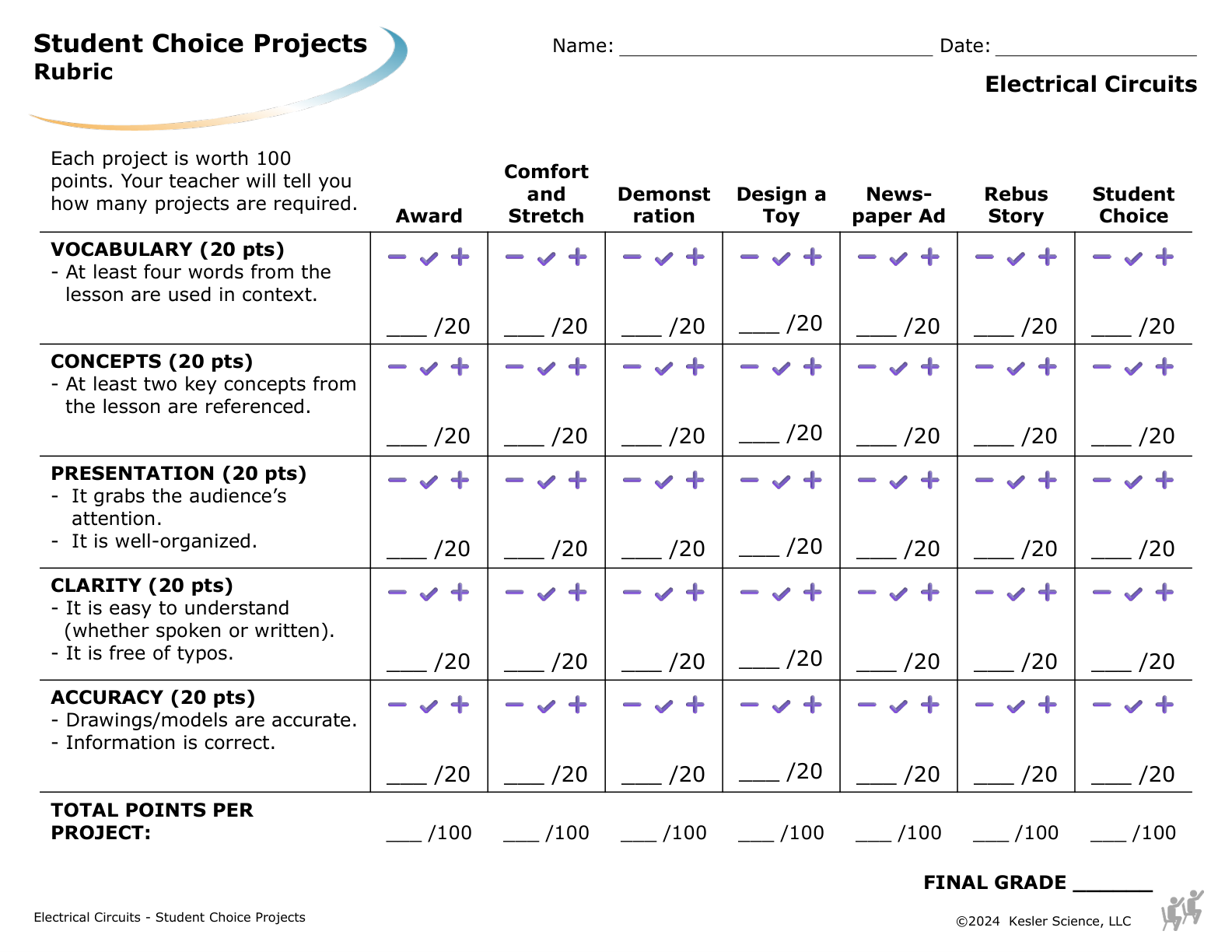

The rubric (the part teachers actually want)

Every project, no matter which option a student picks, is graded on the same shared rubric. Five categories at 20 points each:

• Vocabulary (20 pts) — At least four words from the lesson are used in context.
• Concepts (20 pts) — At least two key concepts from the lesson are referenced.
• Presentation (20 pts) — The project grabs attention and is well-organized.
• Clarity (20 pts) — Easy to understand. Free of typos.
• Accuracy (20 pts) — Drawings and models are accurate. The science is right.

Two differentiated versions in one file

The standard version is for students ready for independent application of circuit concepts. The Reinforcement version is for students who need additional vocabulary or concept support. Three of the six options are swapped for projects with a tighter vocabulary tie-in, and "design your own" is replaced with "collaborate with the teacher" so kids aren't pitching cold.

✅ Evaluate

The Evaluate phase wraps the unit with a formal assessment. It's not all bubble-in. Several questions hand students circuit diagrams and ask them to identify whether the circuit is open or closed, name the components, and predict whether the bulb will light up.

The full assessment has 12 questions across five formats:

• Multiple choice (4 questions) covering circuit components, conductors and insulators, open versus closed, and energy transformations from electricity
• Hotspot / visual (2 questions) where students circle the working circuit in a set of diagrams and describe what's wrong with the broken ones
• Multiselect (2 questions) where students pick all the forms of energy a given circuit produces
• Short answer (2 questions) on the requirements for a working circuit and the difference between series and parallel
• Multipart scenario (2 questions) with a classroom debate where kids identify which circuit setup will light up and explain why

A modified version is included for students who need additional support. Fewer multiple-choice distractors, sentence-starter scaffolds on the short-answer items.

If you've taught all five phases, this assessment shouldn't surprise anyone. It's a chance for kids to show you they get it.
